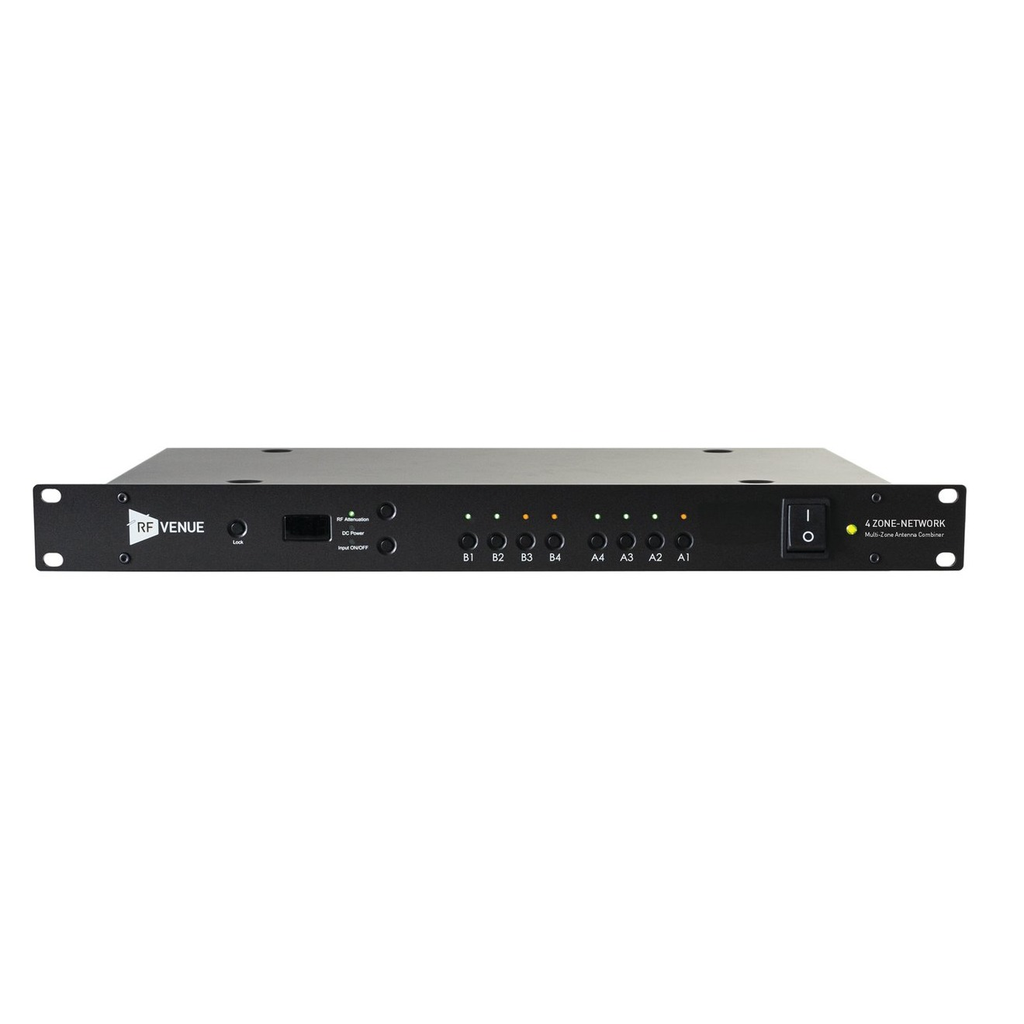

RF Venue 4 ZONE-Network Antenna Combiner

The RF Venue 4 ZONE-Network is a 1U active antenna combiner for wireless microphones, covering 470-960 MHz. It merges up to four diversity antenna pairs on eight BNC inputs into one A/B output pair, so one receiver system can cover four separate areas. Each input can be switched on or off, attenuated from 0 to -31 dB in 1 dB steps and given 12 V DC (200 mA) for active antennas or in-line amplifiers. The network version adds an RJ45 LAN port, so settings, zone status and presets are reachable from a browser. Use it when one system has to follow presenters between a main stage and breakout rooms, indoor and outdoor areas, or a divisible hall. Here it sits between Sennheiser A 1031-U antennas and the EW-DX EM 4 Dante, whose built-in splitter takes the A/B output directly. Unused zones can be switched off remotely mid-show.
