Hover to zoomBlackmagic Mini Converter SDI to Audio
Choose your dates · Prices + VAT
What's in the case
Content list
- 1×Blackmagic Mini Converter SDI to Audio
- 1×12 V power supply
The gear
About this gear

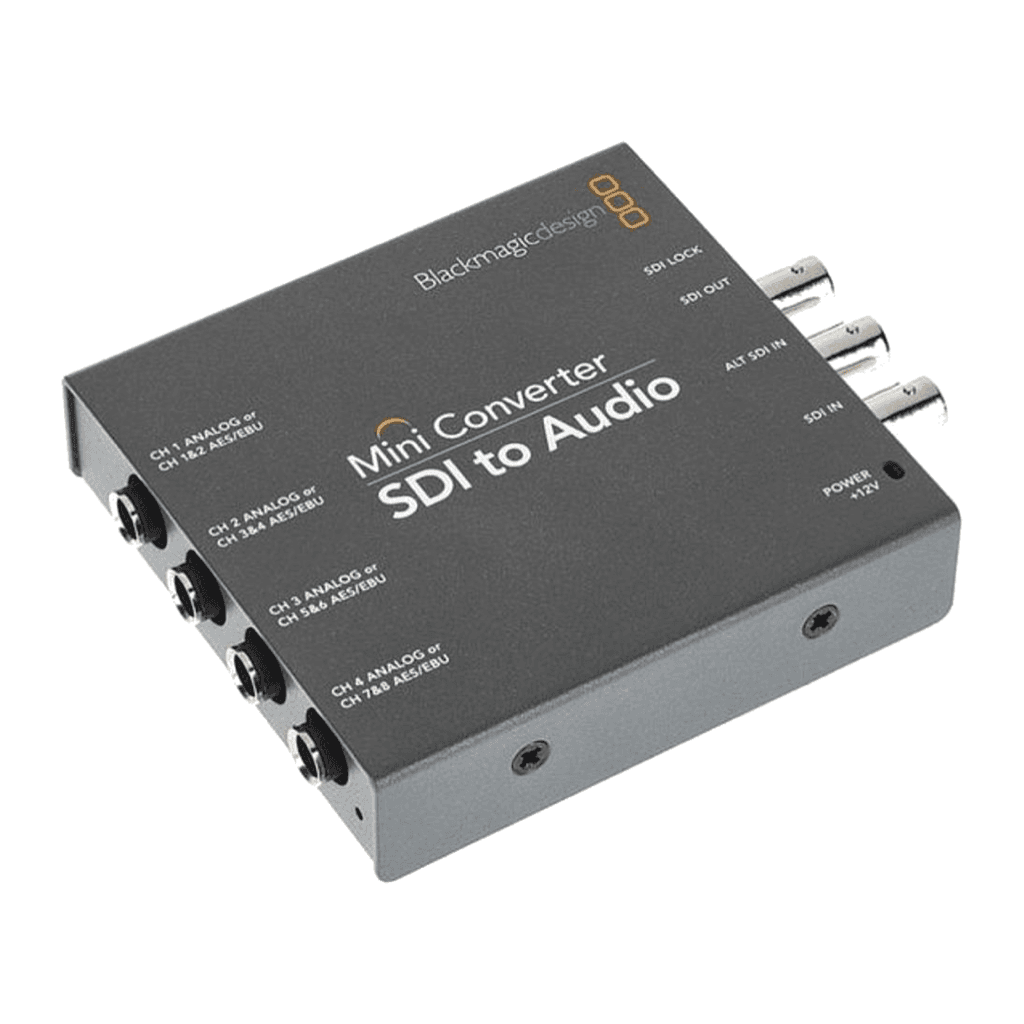

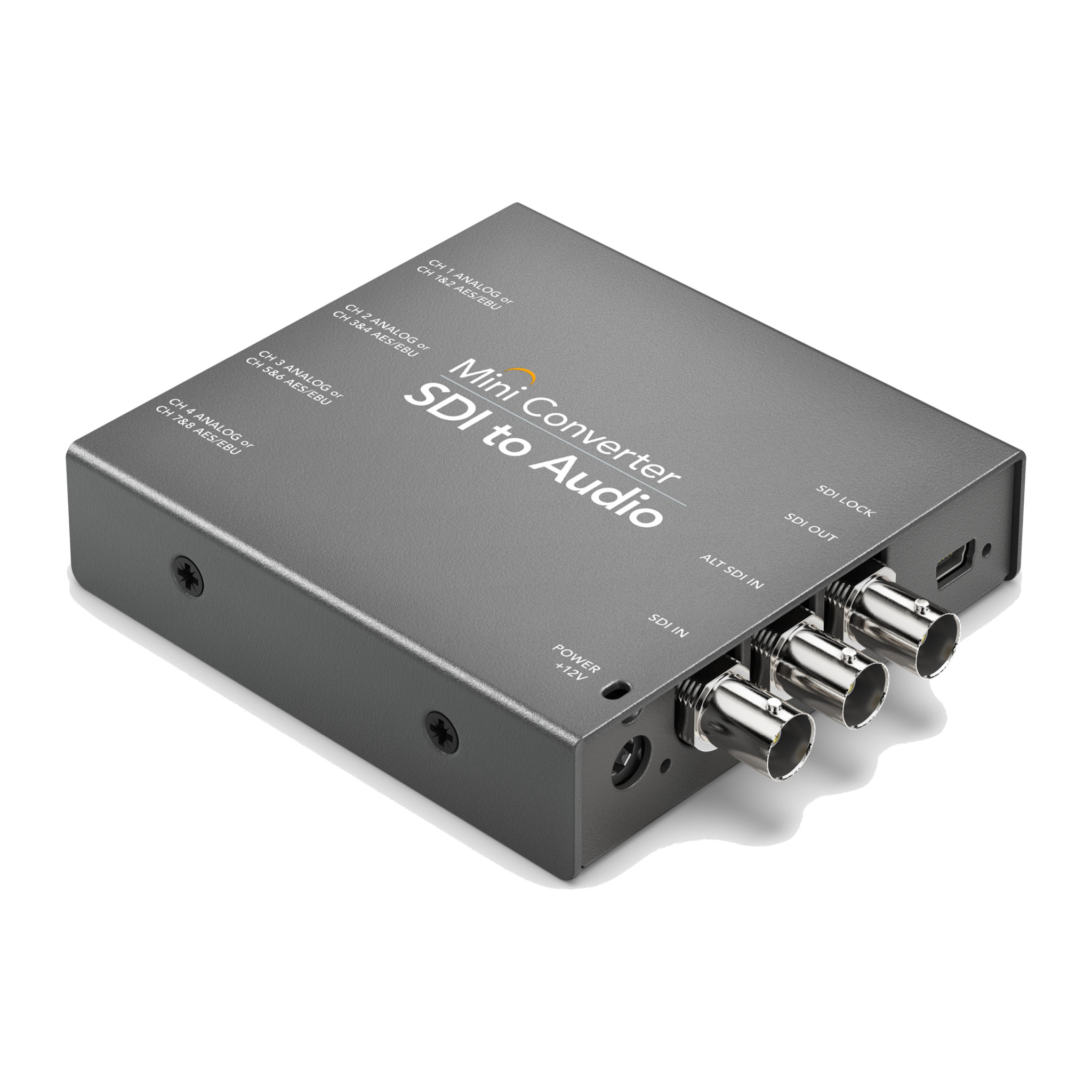

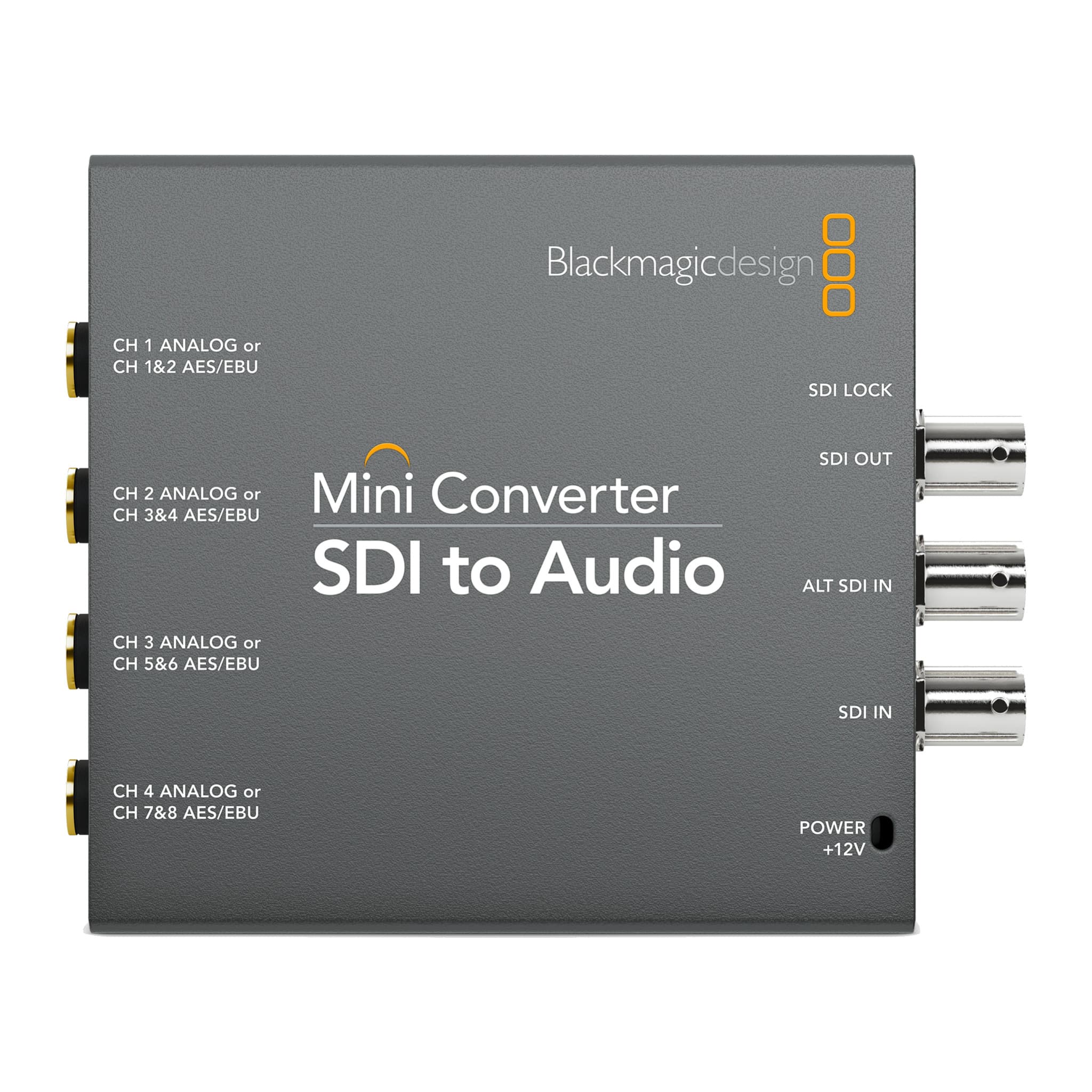

The Mini Converter SDI to Audio de-embeds audio from an SDI signal. It extracts four channels of balanced analogue audio or eight channels of AES/EBU digital audio from SD, HD or 3G-SDI video up to 1080p60 and outputs them on four 6.3 mm jacks. Switches on the unit select analogue or AES/EBU output and which group of embedded channels is extracted. It has a main SDI input, an ALT SDI input for automatic failover, an SDI loop output and USB for setup.
Use it to pull a programme or commentary mix off a camera, switcher or recorder feed and send it to a mixing console, PA, recorder or interpretation booth, or to check what is embedded on an incoming feed. The SDI loop output passes the video on, so the converter can sit in line without breaking the chain.
Highlights
- 01De-embeds 4 channels of balanced analogue or 8 channels of AES/EBU audio from SDI
- 02SD, HD and 3G-SDI with automatic format detection, up to 1080p60
- 03Switches choose analogue or AES/EBU and the embedded channel group
- 04ALT SDI input with automatic failover and an SDI loop output
- 05Four 6.3 mm (1/4") balanced audio outputs; runs from the included 12 V supply
FAQ
Questions about this gear

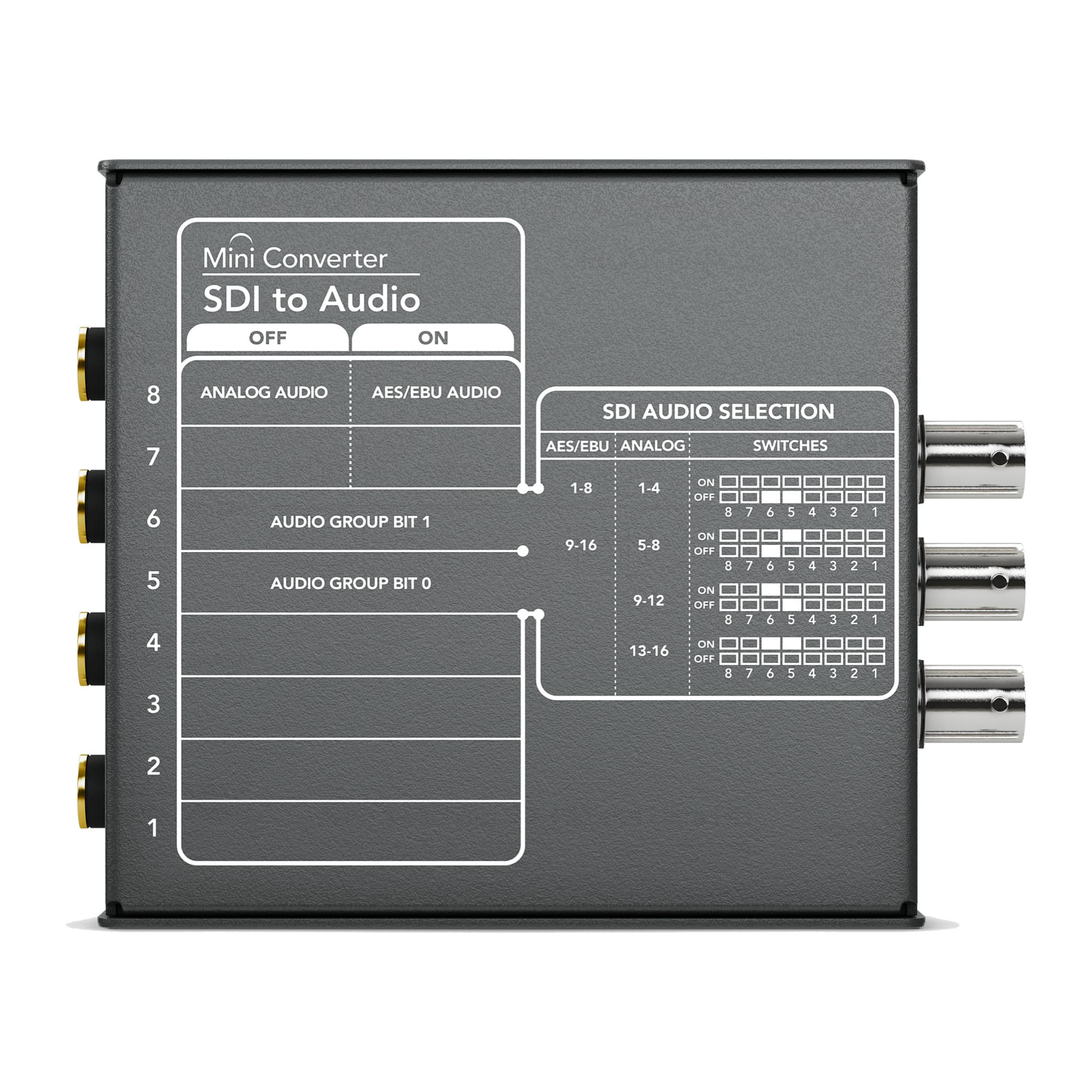

Four analogue channels or eight AES/EBU channels at a time. Switches select the group: analogue 1-4, 5-8, 9-12 or 13-16, or AES/EBU 1-8 or 9-16.
No. This model covers SD, HD and 3G-SDI up to 1080p60. Ultra HD over 6G-SDI needs the Mini Converter SDI to Audio 4K.
Yes. The SDI loop output carries the incoming video on to the next device.
Four 6.3 mm balanced jacks, each carrying one analogue channel or one AES/EBU pair. XLR destinations need jack-to-XLR cables.
