What's in the case
Content list
- 1×Behringer X32 Compact digital mixing console
- 1×Behringer X-USB expansion card (32x32 USB audio, fitted)
- 1×IEC mains power cable
The gear
About this gear

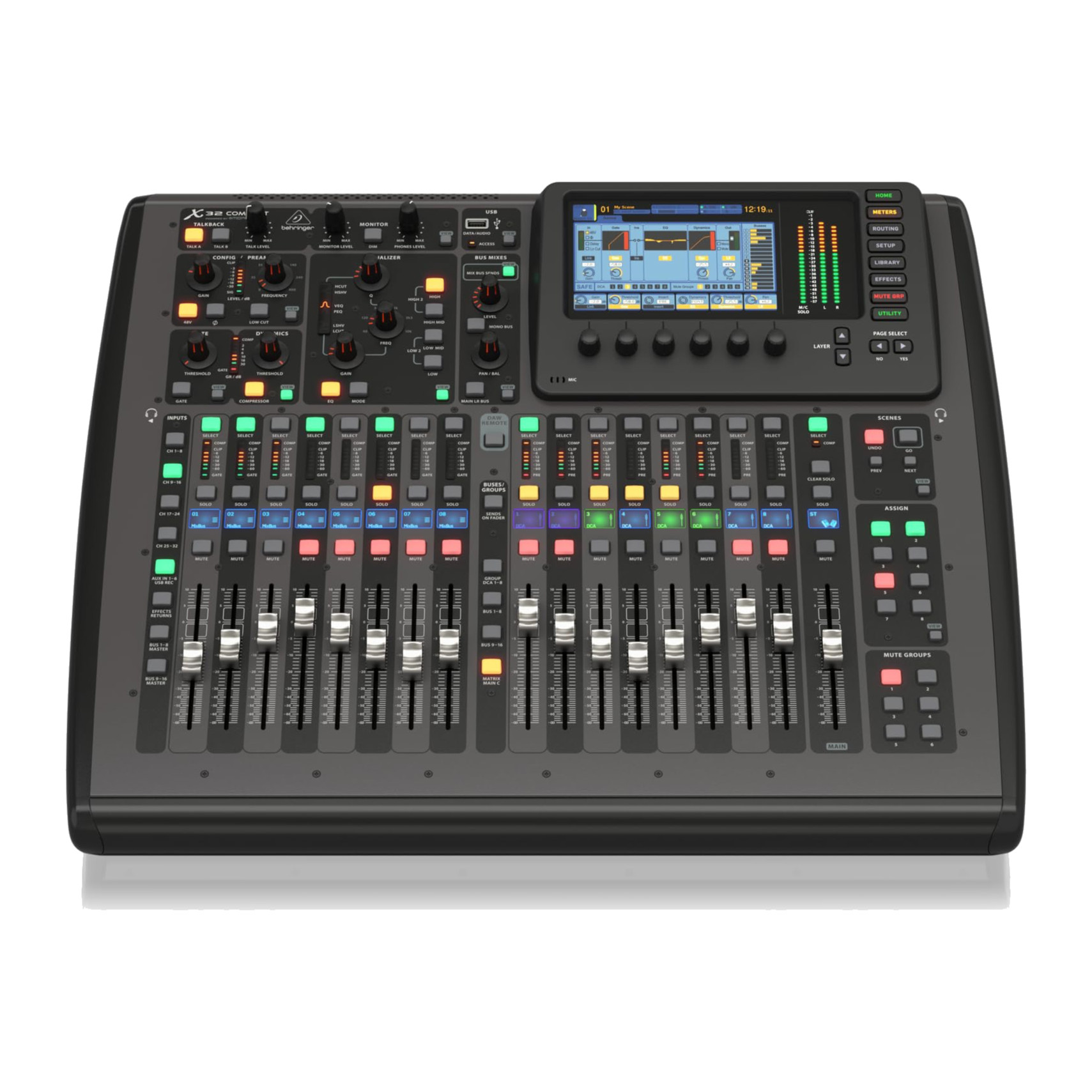

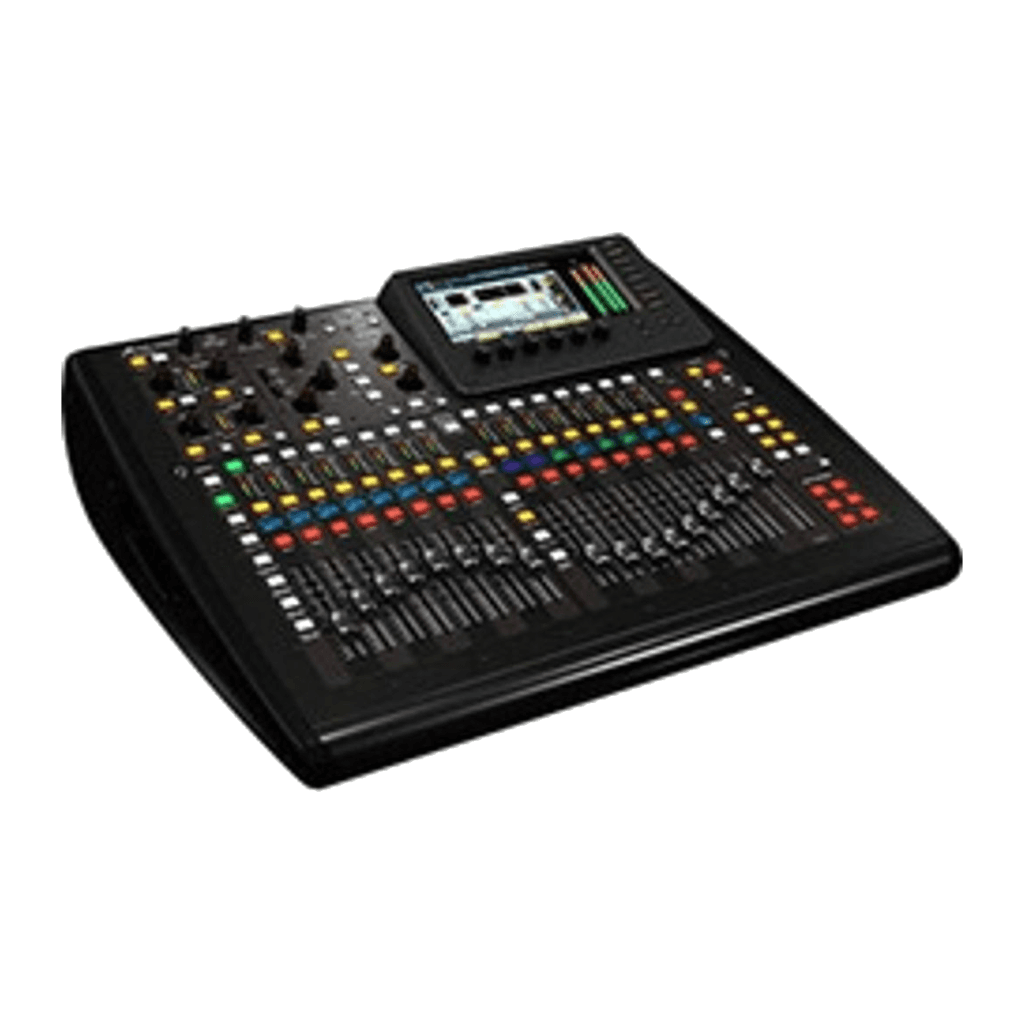

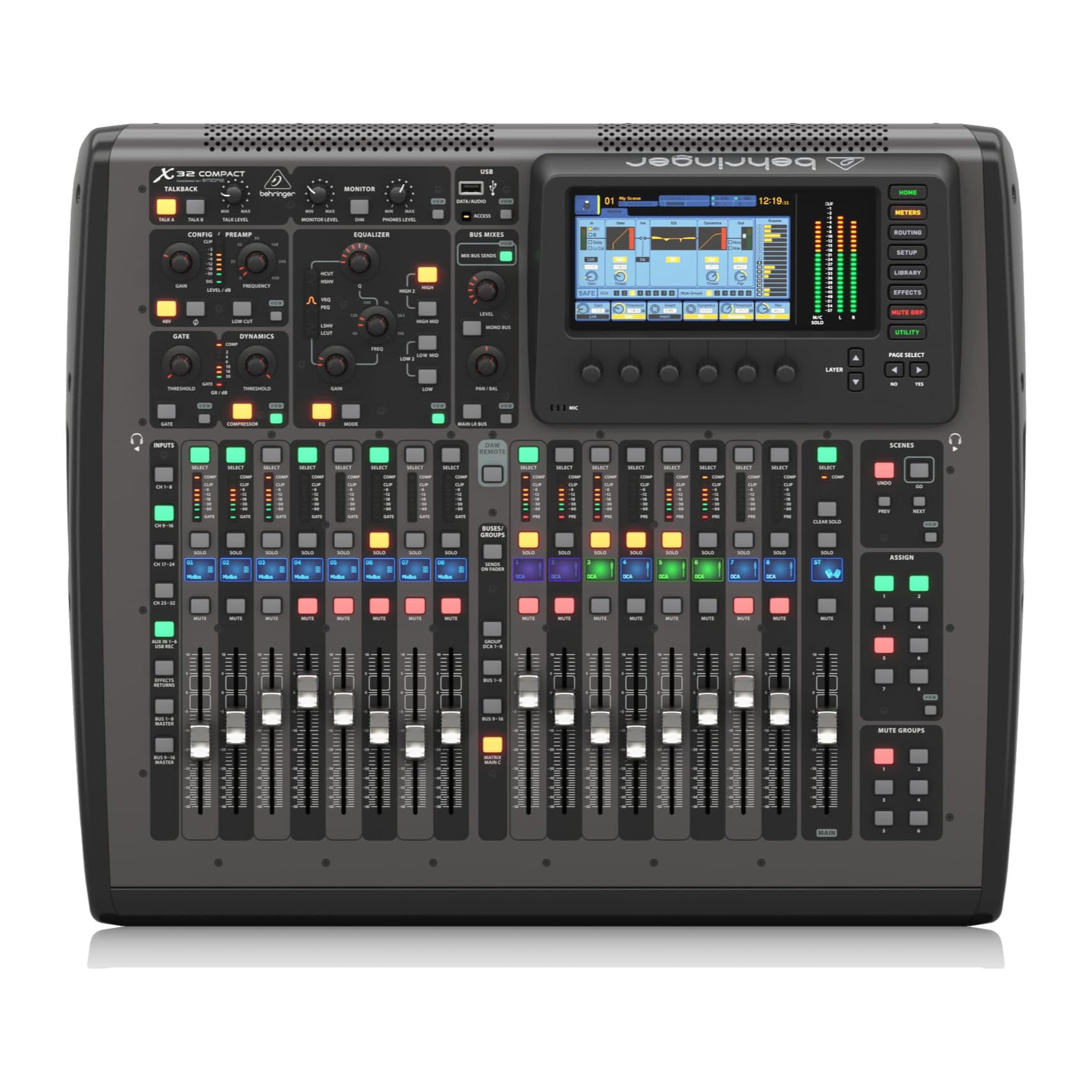

The X32 Compact puts the full X32 mixing engine in a smaller frame: 40 input channels and 25 buses of processing, 16 Midas-designed programmable mic preamps on XLR, 8 XLR outputs, six aux inputs and outputs, two headphone outputs and an AES/EBU digital output. The surface has 17 motorised 100 mm faders (16 plus main), LCD scribble strips and a 7-inch colour screen, with eight stereo effects engines. This unit has the X-USB card fitted for 32x32 channels of USB 2.0 audio to and from a computer.

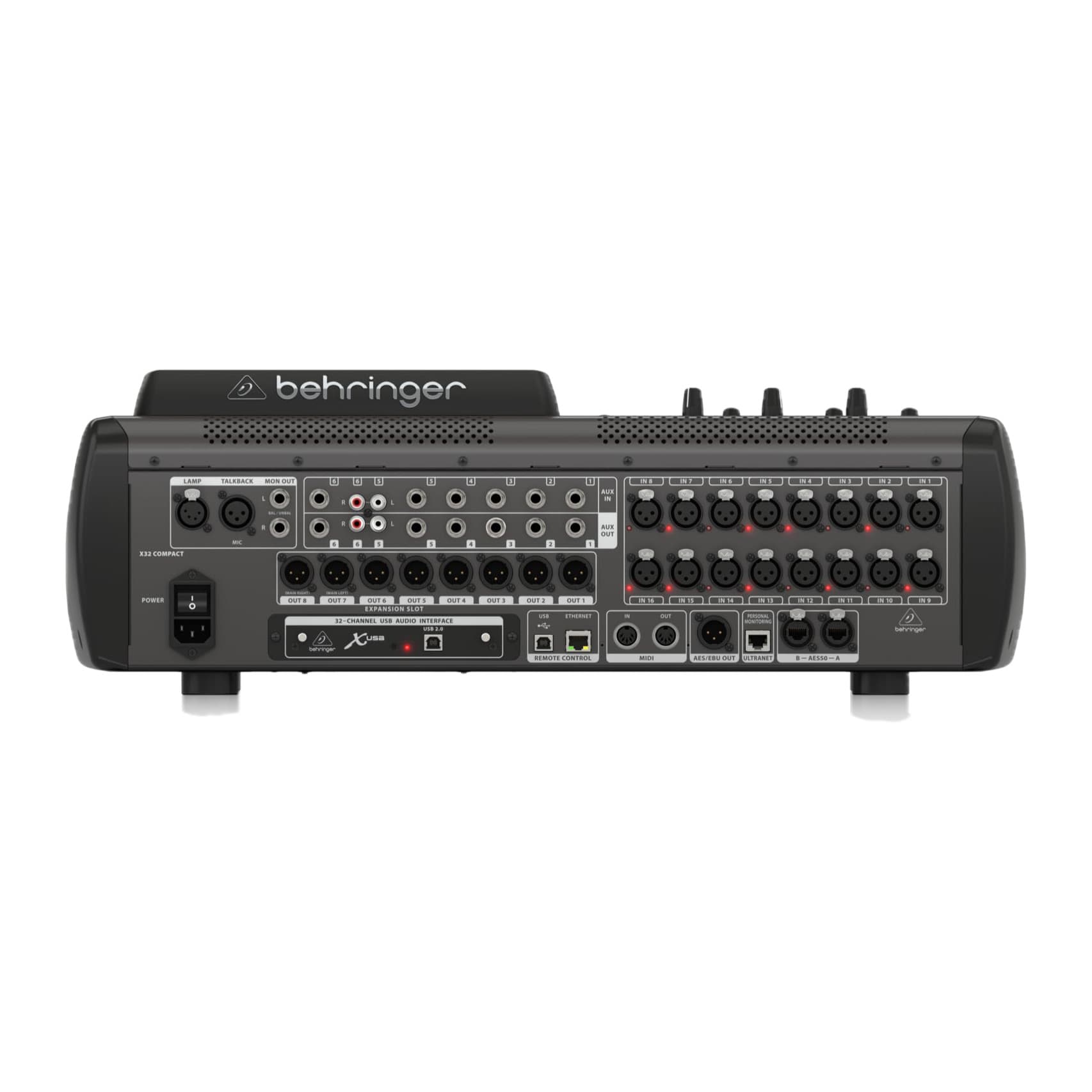

Two AES50 ports add inputs and outputs from stage boxes such as the Behringer S16 over a single Cat5e cable, and the ULTRANET port feeds P16 personal monitors. Remote mixing with X32-Mix, X32-Q or X32-Edit needs a Wi-Fi router on the Ethernet port, as the console has no built-in wireless. It suits bands, conferences, esports stages and streams.
Highlights
- 0116 Midas-designed programmable mic preamps, 40 input channels and 25 mix buses
- 0217 motorised 100 mm faders with LCD scribble strips and a 7-inch colour screen
- 03X-USB card fitted: 32x32 channels of USB 2.0 audio for multitrack record and playback
- 04Dual AES50 ports for stage boxes and ULTRANET for Behringer P16 personal monitors
- 05Ethernet for X32-Edit, X32-Mix and X32-Q remote control via an external Wi-Fi router
FAQ
Questions about this gear
16 XLR mic/line inputs with Midas-designed preamps, plus six aux inputs. AES50 stage boxes such as the Behringer S16 add more, within the console's 40 input channels.
Yes, through the fitted X-USB card: up to 32 channels each way over USB 2.0 to a DAW on a Mac or PC. A USB port on the top panel can also record the stereo mix to a USB stick.
No. Connect a Wi-Fi router or access point to the Ethernet port to use the X32-Mix (iPad), X32-Q (phone) and X32-Edit (computer) apps.
8 XLR outputs, six aux outputs on 6.3 mm jack, two headphone outputs and an AES/EBU stereo digital output. AES50 stage boxes add more outputs on stage.
