Hover to zoomSennheiser XSW 2-835 Handheld Set (E-Band)
Choose your dates · Prices + VAT
Online orders open soon
What's in the case
Content list
- 1×Sennheiser EM-XSW 2 receiver (E-band)
- 1×Sennheiser SKM 835-XSW handheld transmitter
- 2×Rod antenna (BNC)
- 1×Sennheiser NT 12-5CW power supply
- 1×Sennheiser MZQ 1 microphone clamp
- 2×AA battery
The gear
About this gear

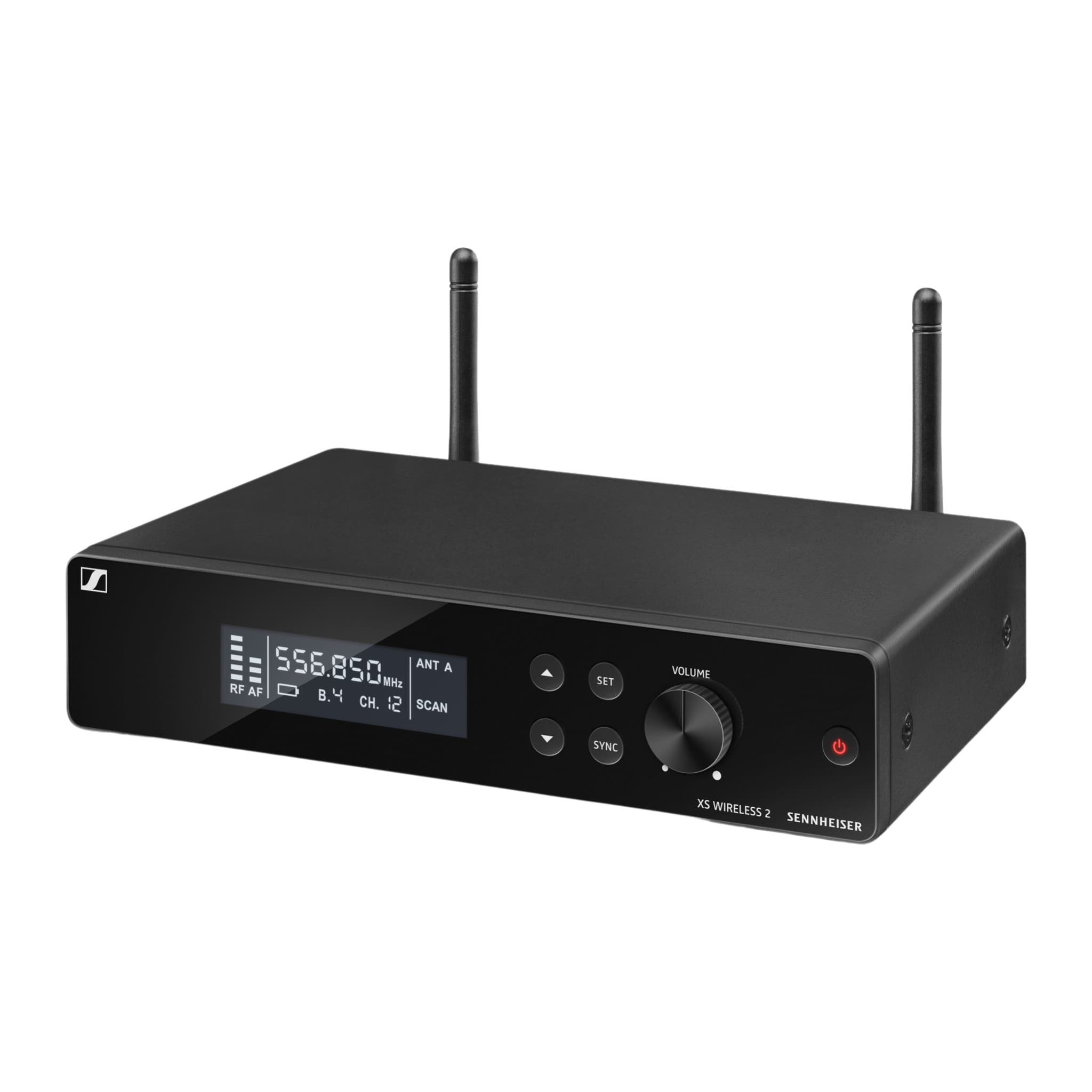

The Sennheiser XSW 2-835 is a complete analogue UHF handheld set: an SKM 835-XSW transmitter with Sennheiser's dynamic cardioid 835 capsule and an EM-XSW 2 receiver. The receiver has a metal housing, true diversity reception on two external BNC antennas, an LCD for RF and audio levels, and both balanced XLR and unbalanced 6.3 mm jack outputs with a mic/line switch. This E-band version tunes 821–832 MHz and 863–865 MHz, with up to 12 compatible channels, a frequency scan and a SYNC button to pair the handheld on a free channel. The transmitter runs about 10 hours on two AA batteries.
It suits presenters, hosts, award shows, audience Q&A and live vocals. The receiver sits on a table next to the mixer, and the clamp fits the microphone on a standard stand. It runs alongside our other XSW 2 E-band channels, but XS Wireless parts do not pair with Sennheiser evolution wireless units.
Highlights
- 01Complete handheld set: SKM 835-XSW transmitter with dynamic cardioid 835 capsule and EM-XSW 2 receiver
- 02E-band: 821–832 MHz and 863–865 MHz, up to 12 compatible channels, scan and SYNC
- 03True diversity receiver in a metal housing with two external BNC antennas
- 04Balanced XLR and unbalanced 6.3 mm jack outputs with mic/line switch
- 0510 mW transmitter, about 10 hours on two AA batteries
FAQ
Questions about this gear
One EM-XSW 2 receiver with its two antennas and power supply, one SKM 835-XSW handheld transmitter, a clamp to put the microphone on a stand and two AA batteries.
Yes. It is on the same E-band as our other Sennheiser XSW 2 systems, so several channels can run side by side. Sennheiser specifies up to 12 compatible channels in one band; scan on site before the event.
No. Sennheiser states that XS Wireless and evolution wireless components do not work together, so transmitter and receiver must both be XS Wireless in the same band.
A balanced XLR and an unbalanced 6.3 mm jack, with a mic/line switch to match the mixer input.
