Hover to zoomSmallRig V-Mount Battery Plate
Choose your dates · Prices + VAT
What's in the case
Content list
- 1×SmallRig V-Mount Battery Plate
- 1×Arca-Swiss quick-release plate
The gear
About this gear

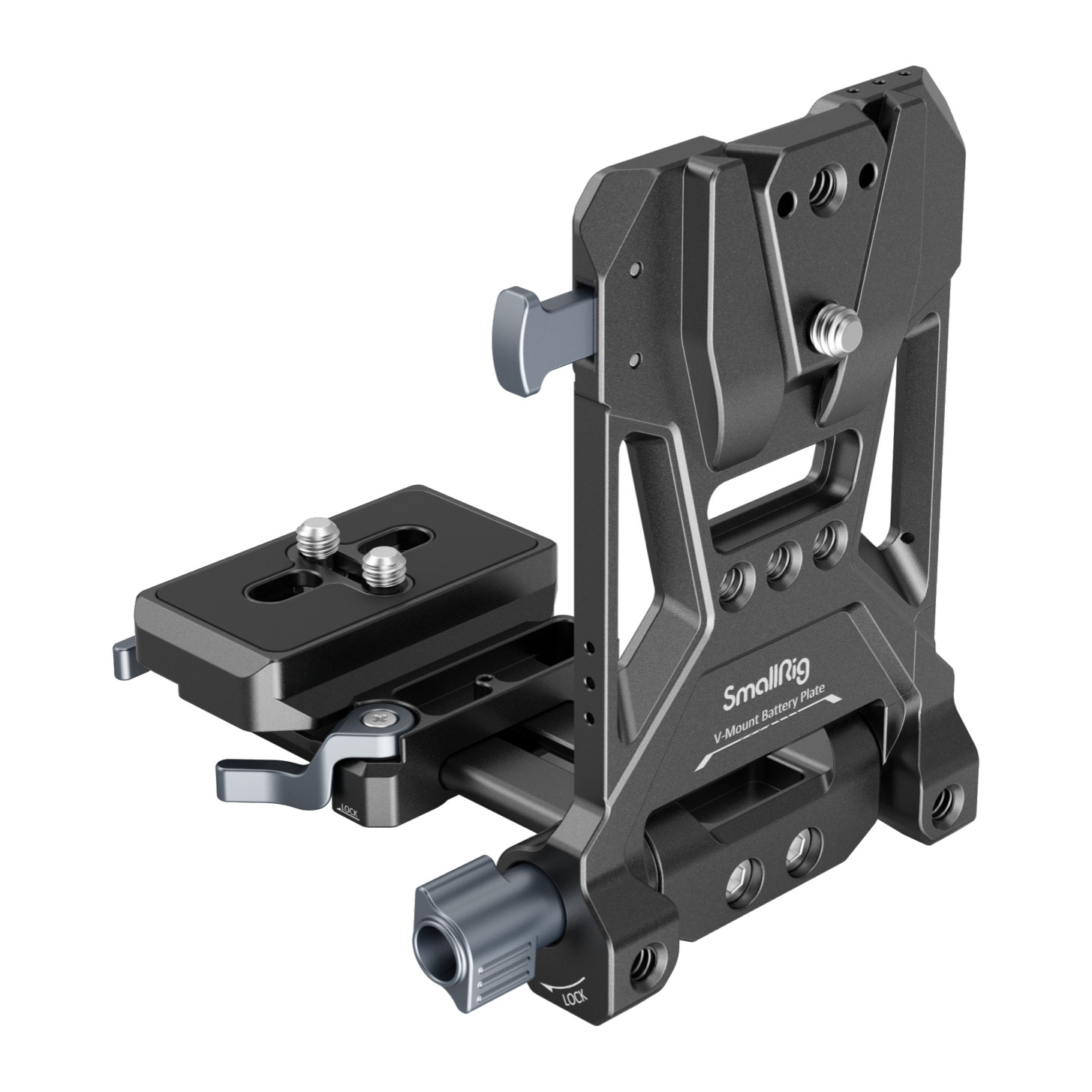

A mechanical mounting plate that carries a V-mount battery behind a mirrorless or DSLR camera. The camera sits on a stretchable baseplate with an Arca-Swiss quick-release plate underneath, and the V-mount bracket folds back 90° with damping so a flip screen stays reachable. SmallRig rates it to a 5 kg payload, it weighs about 260 g and there are 1/4"-20 holes for extra accessories.
SmallRig lists no power outputs on the plate itself, so cameras and monitors are fed from the battery's own D-Tap or USB-C ports with the right cables. Paired with a compact 99 Wh pack it gives a small handheld or tripod rig several hours of power without a cage full of camera batteries.
Highlights
- 01Holds a standard V-mount battery behind mirrorless and DSLR cameras
- 02V-mount bracket folds back 90° with damping for flip-screen access
- 03Arca-Swiss quick-release plate for fast moves to a tripod or slider
- 04Stretchable baseplate adapts to different camera body sizes
- 055 kg payload rating; 1/4"-20 holes for extra accessories
FAQ
Questions about this gear
Not by itself. SmallRig lists no outputs on the plate, so power the camera from the battery's D-Tap or USB-C port with a suitable dummy-battery or DC cable.
Standard V-mount batteries. Compact 99 Wh packs such as the SmallRig VB99 keep the rig small.
Yes, if the head takes Arca-type plates: the Arca-Swiss quick-release plate under the base clicks into Arca-type clamps.
