Hover to zoomCat6a S/FTP Network Cable (15m)
Choose your dates · Prices + VAT
What's in the case
Content list
- 1×Danicom Cat6a S/FTP patch cable, RJ45 to RJ45 (15 m)
The gear
About this gear

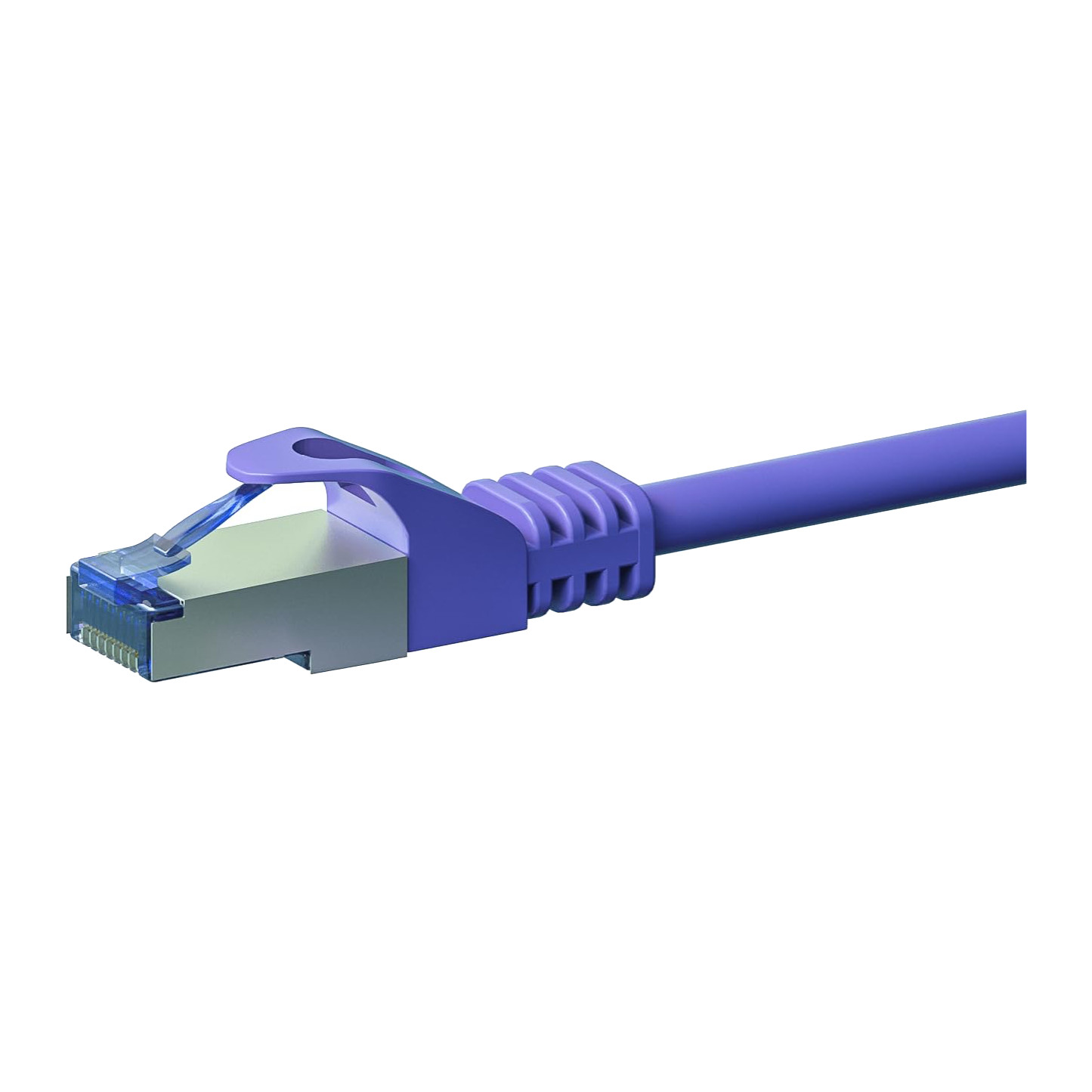

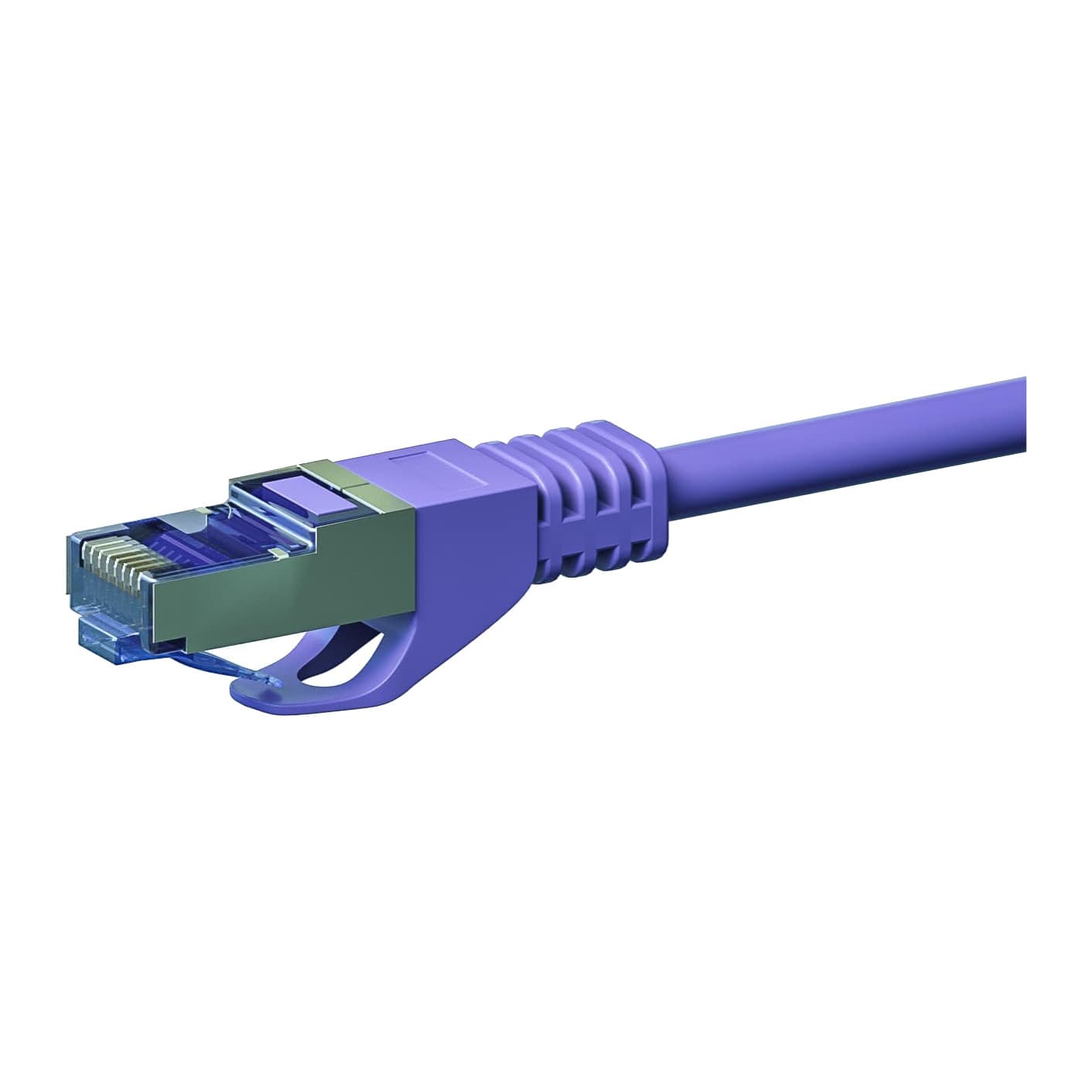

A 15 m Danicom Cat6a patch cable with S/FTP (PiMF) construction: each of the four pairs has its own foil screen, with an overall braid on top. The conductors are 100% copper, 26 AWG, under a 6 mm LSZH jacket, and the moulded RJ45 plugs have gold-plated contacts. Rated to 500 MHz, it carries 10GBASE-T, PoE and AES50. It covers runs across a control room or from the gallery out to a camera position, access point or stage box.
Highlights
- 01Cat6a S/FTP (PiMF): each pair foil-screened, with an overall braid
- 024x2x AWG 26 conductors in 100% copper; 6 mm LSZH halogen-free jacket
- 03Rated to 500 MHz; moulded RJ45 (8P8C) plugs at both ends
- 04Gold-plated contacts and slim strain-relief boots
FAQ
Questions about this gear
Yes. Cat6a is the category specified for 10GBASE-T, which runs up to 100 m over a Cat6a channel, so 15 m is well within range.
Yes. All four pairs are copper, so it carries PoE and PoE+ to cameras, access points and other powered devices.
Yes. AES50 links should use shielded cable and this one is double shielded. Its standard RJ45 plugs fit the etherCON sockets on the X32 and S16.
