Hover to zoomSommer SDI Cable Drum (60m)
Choose your dates · Prices + VAT
What's in the case
Content list

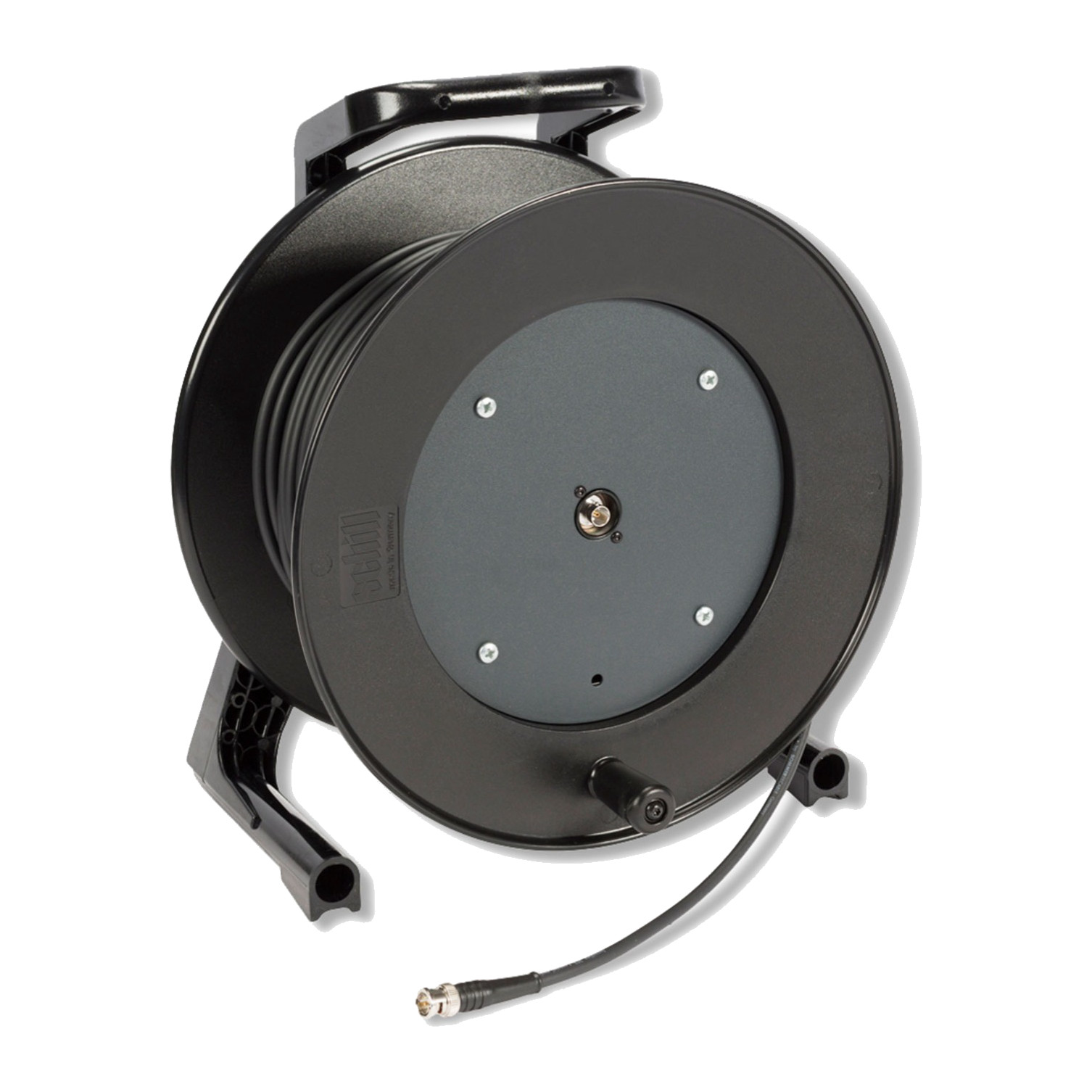

- 1×Sommer SC-Vector 0.8/3.7 75 ohm SDI cable drum, 60 m, BNC-BNC
The gear
About this gear
A 60 m run of Sommer SC-Vector 0.8/3.7 coax with BNC connectors at each end. The cable is 75 ohm with a 0.8 mm solid copper conductor, gas-injected PE dielectric (3.7 mm) and a 6 mm PVC outer jacket. Sommer rates the cable for 111 m at 3G-SDI, 75 m at 6G-SDI and 48 m at 12G-SDI (cable only, without connectors).
That makes 60 m comfortable for HD-SDI and 3G-SDI 1080p, and still inside the 6G-SDI figure, but well beyond what Sommer specifies for 12G-SDI, so Ultra HD 60p links of this length belong on fibre. On events it suits the long legs from front of house or a camera platform back to the gallery, sent as one continuous length instead of a chain of patch leads.
Highlights
- 01Sommer SC-Vector 0.8/3.7, 75 ohm, 0.8 mm solid copper conductor
- 02Gas-injected PE dielectric and 6 mm PVC jacket, BNC at both ends
- 0360 m sits within Sommer's 3G-SDI (111 m) and 6G-SDI (75 m) ratings
- 04Not suitable for 12G-SDI: Sommer rates this cable to 48 m at 12G
FAQ
Questions about this gear
6G-SDI (Ultra HD up to 30p) is within Sommer's 75 m rating, but 12G-SDI is rated only to 48 m, so 4K60 over 12G needs fibre at this distance.
Yes. Sommer rates SC-Vector 0.8/3.7 to 111 m at 3G-SDI, so 60 m leaves plenty of margin.
BNC at both ends, the standard SDI connector, so it plugs straight into cameras, switchers, converters and monitors.
