Hover to zoomSennheiser EW-D ASA Antenna Splitter (694-1075 MHz)
Choose your dates · Prices + VAT
What's in the case
Content list
- 1×Sennheiser EW-D ASA active antenna splitter (T-U-V-W, 694-1075 MHz)
- 1×Sennheiser NT 12-35 CS power supply
- 8×BNC antenna cables
- 1×BNC antenna extension cable
The gear
About this gear

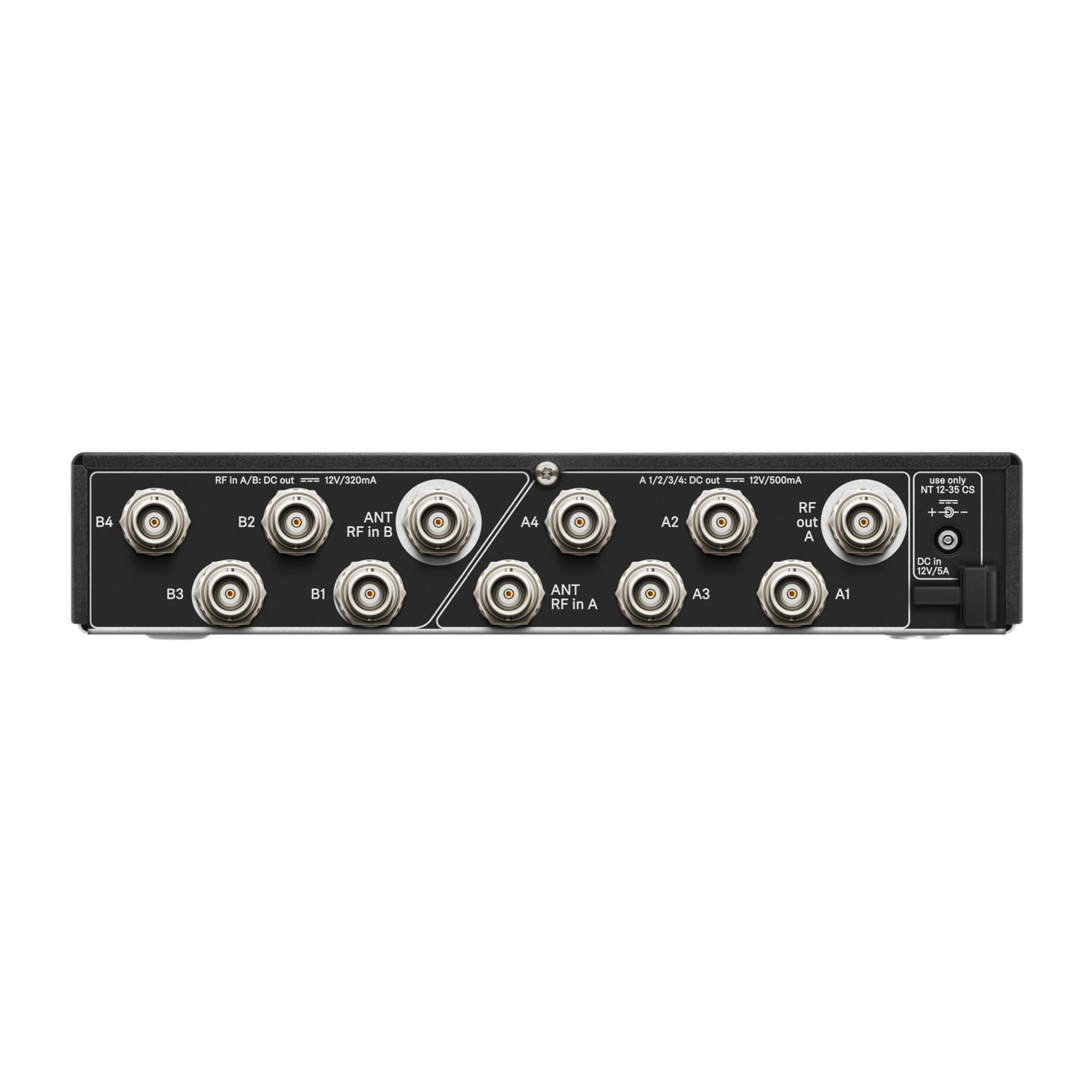

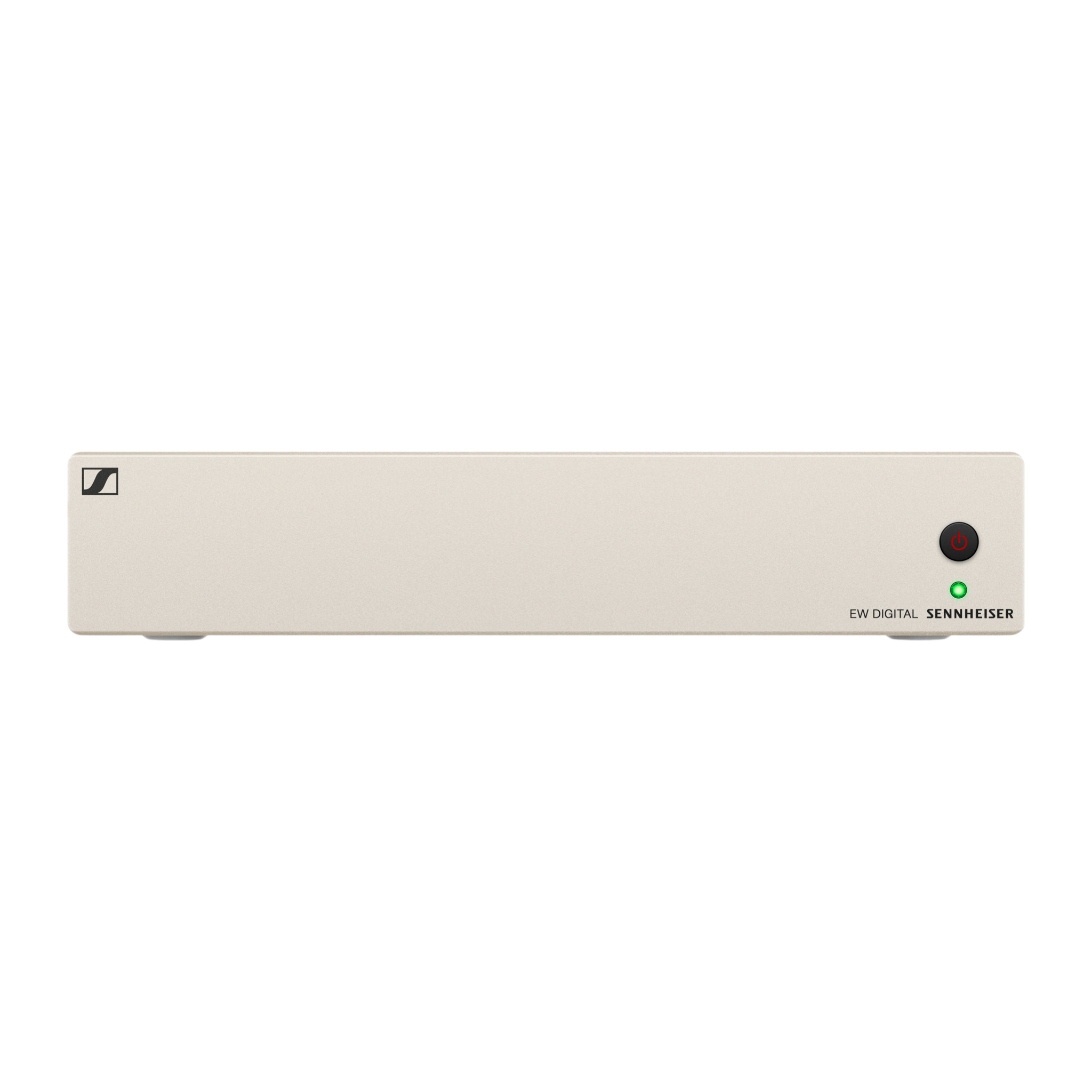

The Sennheiser EW-D ASA is an active antenna splitter; this is the T-U-V-W version for 694-1075 MHz. It distributes one A/B antenna pair to four receivers (dual 1:4, or 1:8) at 0 ± 1 dB gain, and an RF output links a second splitter for eight channels. Outputs A1-A4 carry 12 V DC to power Sennheiser EW-D receivers, and both antenna inputs supply 12 V (320 mA) for antenna boosters. It runs from the supplied NT 12-35 CS power supply.
In our kit it serves the Sennheiser XSW 2 E-band sets, whose band falls inside 694-1075 MHz: four receivers share one antenna pair instead of eight rod antennas. It does not cover the Q1-9 band (470.2-550 MHz) of the EW-DX system, which uses the EW-DX EM 4's built-in splitter and the RF Venue 4 ZONE-Network instead. Directional antennas such as the Sennheiser ADP UHF are rented separately.
Highlights
- 01Active dual 1:4 splitter: one A/B antenna pair feeds up to four receivers at 0 ± 1 dB gain
- 02T-U-V-W version for 694-1075 MHz; it does not cover 470-694 MHz systems
- 03RF cascade output to link a second splitter for eight channels
- 0412 V DC to EW-D receivers on outputs A1-A4 and to antenna boosters on both antenna inputs
- 05Supplied with the NT 12-35 CS power supply and eight BNC receiver cables
FAQ
Questions about this gear
The Sennheiser XSW 2 E-band sets, whose frequencies fall within 694-1075 MHz. It does not work with the EW-DX Q1-9 system (470.2-550 MHz); the EW-DX EM 4 Dante has its own built-in splitter.
Sennheiser designs it for EW-D and EW-DX receivers in the same frequency range: four per splitter, or eight with two splitters cascaded. Outputs A1-A4 also carry 12 V DC for EW-D receivers, so check that other receivers accept DC on their antenna input.
No. Add directional antennas such as the Sennheiser ADP UHF, or omni antennas such as the A 1031-U, rented separately. A BNC antenna extension cable is included.
