What's in the case
Content list
- 1×Zowietek ZowieKBD PTZ controller
- 1×12 V power adapter
The gear
About this gear

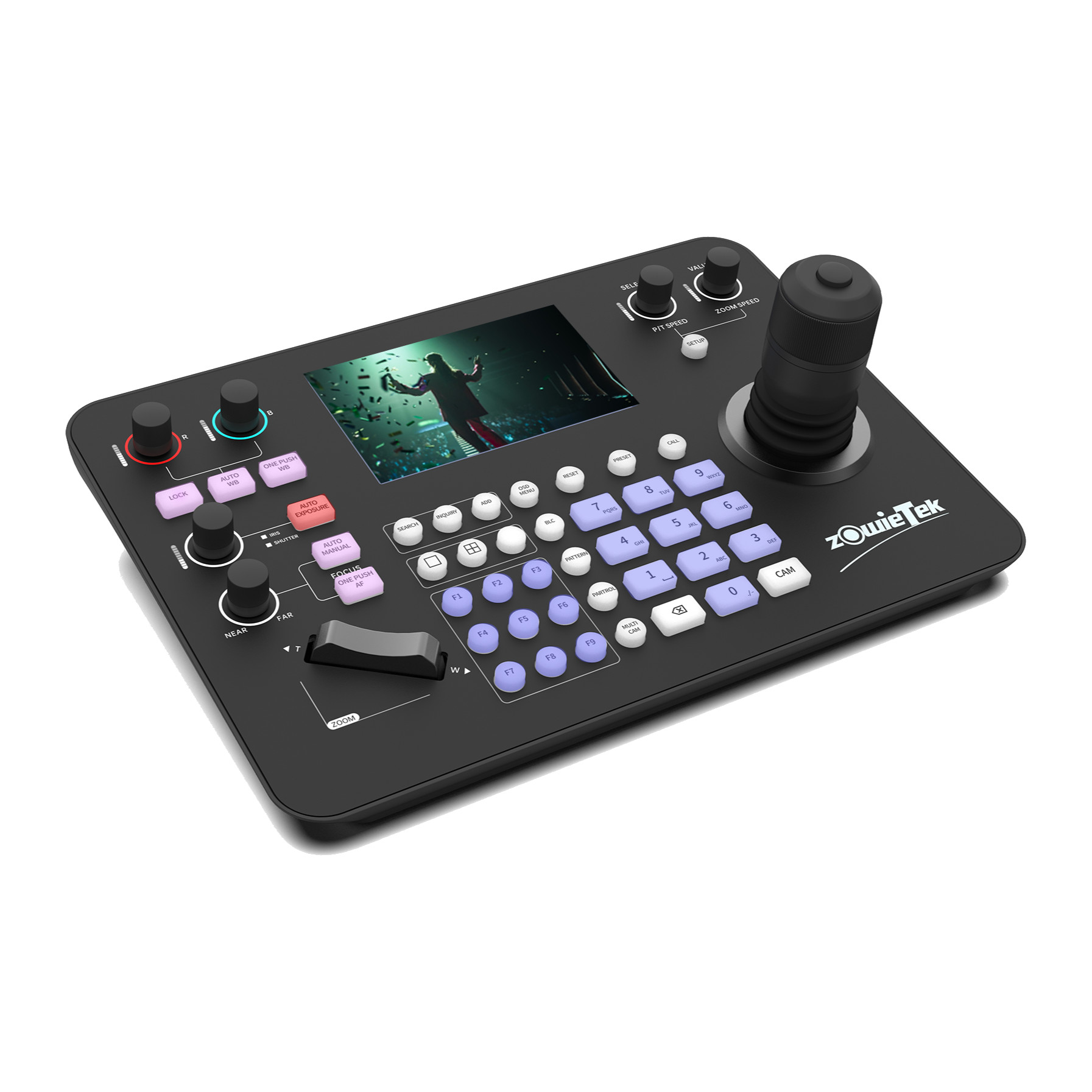

ZowieKBD is a desk PTZ controller with a 7D joystick, zoom rocker, 41 backlit buttons, six dial knobs and a 5-inch 800x480 LCD that previews one or four cameras. It speaks VISCA over IP, ONVIF, NDI, serial VISCA and Pelco D/P over RS-232 or RS-422/485, stores up to 255 presets and addresses up to 255 IP cameras. An HDMI output repeats the preview on a larger monitor.
At a multi-camera show it gives one operator hands-on pan, tilt, zoom, focus and exposure for a group of PTZ cameras, with tally borders on the preview and quad groups for jumping between areas. Live preview works with NDI|HX (on the NDI-activated version), ONVIF and RTSP feeds. Power comes from PoE (802.3af) or the supplied 12 V adapter, in a 1.83 kg alloy chassis.
Highlights
- 017D joystick, zoom rocker, 41 backlit buttons and six dial knobs
- 025" LCD for single or quad live preview, plus HDMI output to a larger screen
- 03VISCA over IP, ONVIF, NDI, serial VISCA and Pelco D/P control
- 04Up to 255 presets and 255 IP cameras; quad groups and patrols
- 05PoE (802.3af) or 12 V DC power; tally borders and tally GPIO
FAQ
Questions about this gear
Any PTZ camera that accepts VISCA over IP, ONVIF, NDI control, serial VISCA or Pelco D/P, including Zowietek's own PTZ and POV cameras.
Yes, on its 5-inch LCD in single or quad view, from NDI|HX, ONVIF or RTSP streams, and the HDMI output repeats it on a bigger screen. NDI preview needs the NDI-activated version.
From a PoE (802.3af) network port or the supplied 12 V DC adapter.
