Hover to zoom10Gtek G0101-SFP Gigabit SFP Media Converter
Choose your dates · Prices + VAT
What's in the case
Content list
- 1×10Gtek G0101-SFP Gigabit media converter
- 1×5 V 1 A power adapter
The gear
About this gear

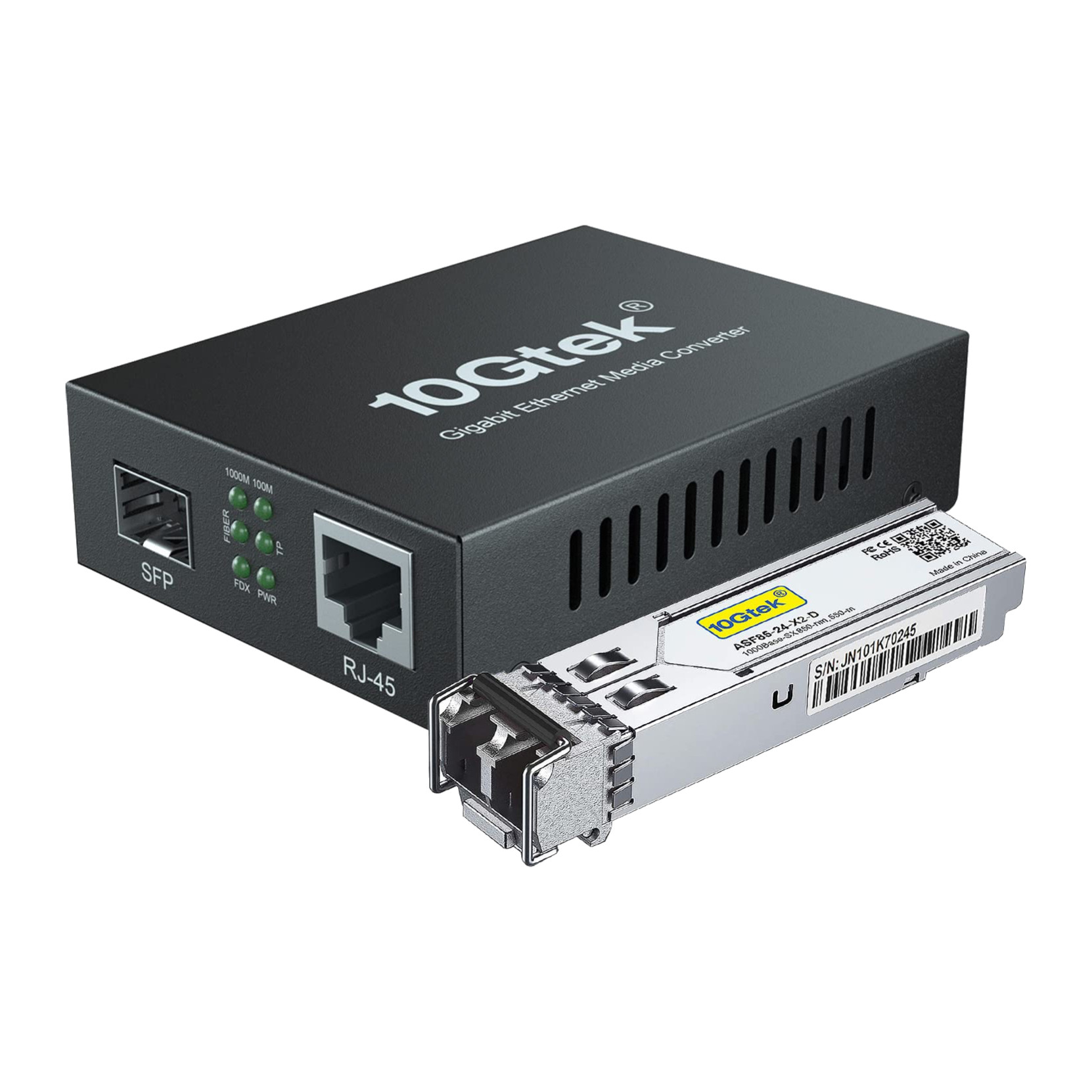

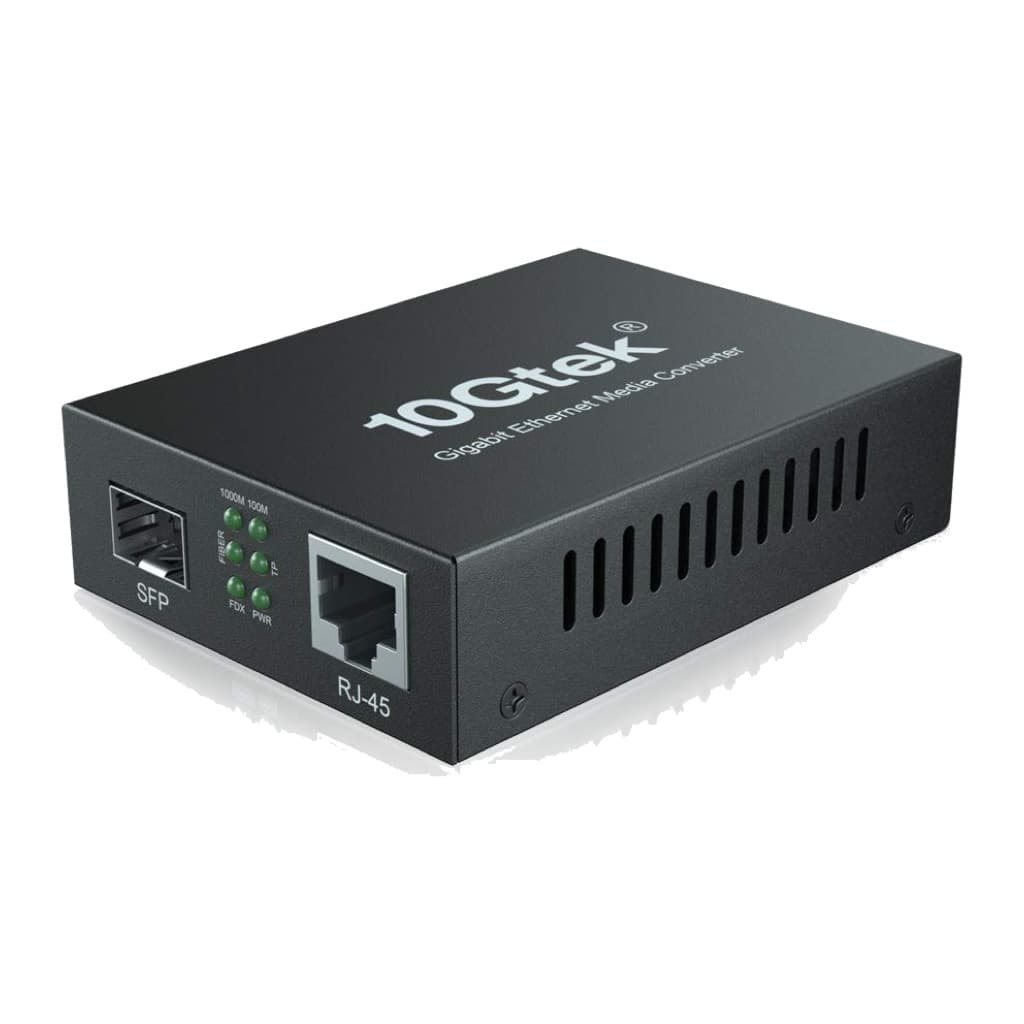

The 10Gtek G0101-SFP converts between a 10/100/1000 Mbps RJ45 port and an SFP slot, so the fibre side is set by whichever 1G SFP module is fitted: SX for multimode, LX or longer-reach modules for single-mode. It runs from a 5 V 1 A adapter, uses a Marvell 88E6320 switch chip and passes jumbo frames of up to 9216 bytes.
Used in pairs, or against an SFP port on a switch, it carries Ethernet over fibre well beyond copper's 100 m: a remote camera or encoder position, a ticketing desk, or an access point at the far end of a site. Jumbo-frame support matters when the network runs NDI with a raised MTU.
Highlights
- 01One 10/100/1000 Mbps RJ45 port and one 1G SFP slot
- 02Fibre type set by the SFP fitted: SX for multimode, LX/EX/ZX for single-mode
- 03Jumbo frames up to 9216 bytes, 2K MAC table, 512 KB buffer
- 04Powered by a 5 V 1 A DC adapter; 94 x 70 x 26 mm
- 05LEDs for power, duplex, fibre link, copper link and 100/1000 speed
FAQ
Questions about this gear
That depends on the SFP module fitted: an SX module needs multimode fibre such as OM3, an LX module needs single-mode. Both ends of the link must match.
For a point-to-point link you need a converter at each end, or one converter facing an SFP port on a switch with a matching module.
No. It is a 1 Gbps converter and takes 1G (1.25G) SFP modules, not 10G SFP+ optics.
10Gtek specifies 0 to 50 °C operation and it has no weather sealing, so keep it in a rack, case or covered position.
