Hover to zoomPercon FO410DMPUR Single-Mode 4-Core Fiber Drum (250m)
Choose your dates · Prices + VAT
What's in the case
Content list

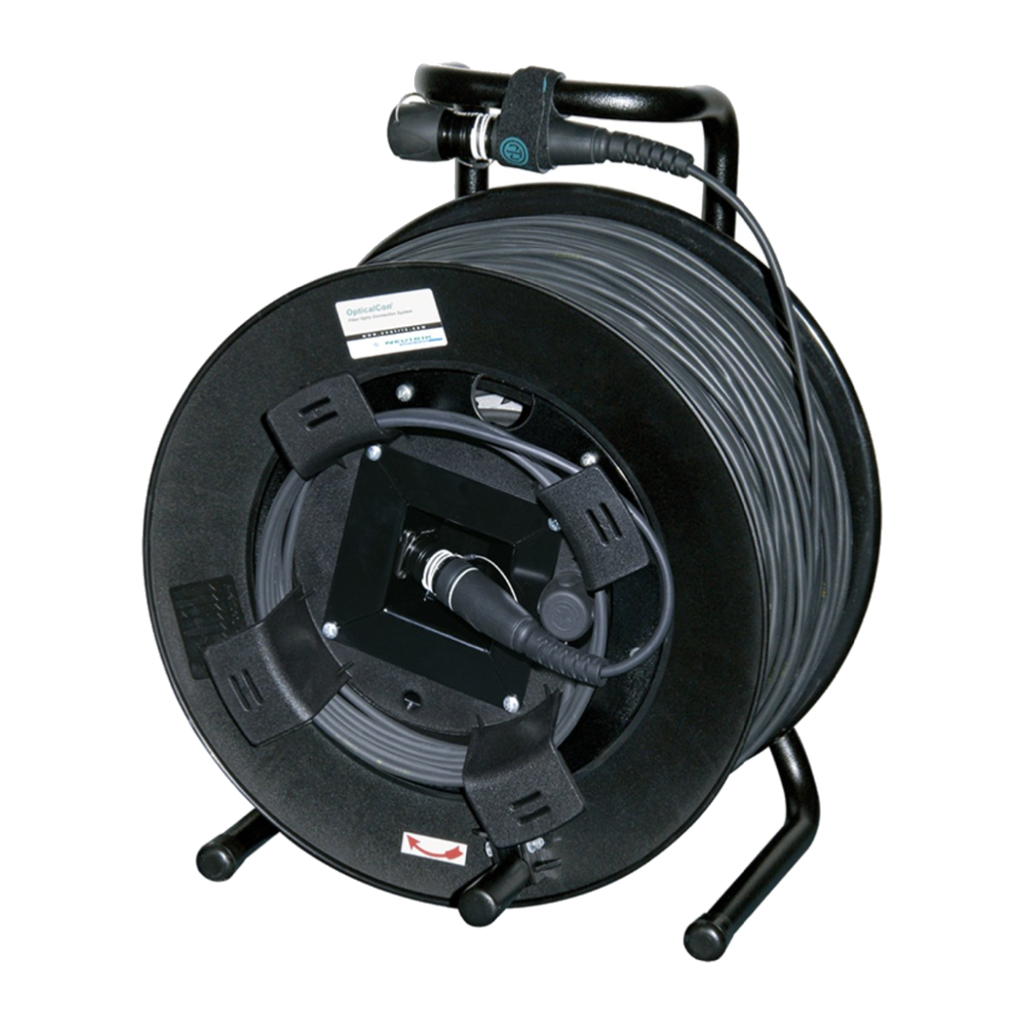

- 1×Percon FO410DMPUR/ARMOURED single-mode 4-fibre armoured cable on drum (250 m), connectors as supplied
The gear
About this gear

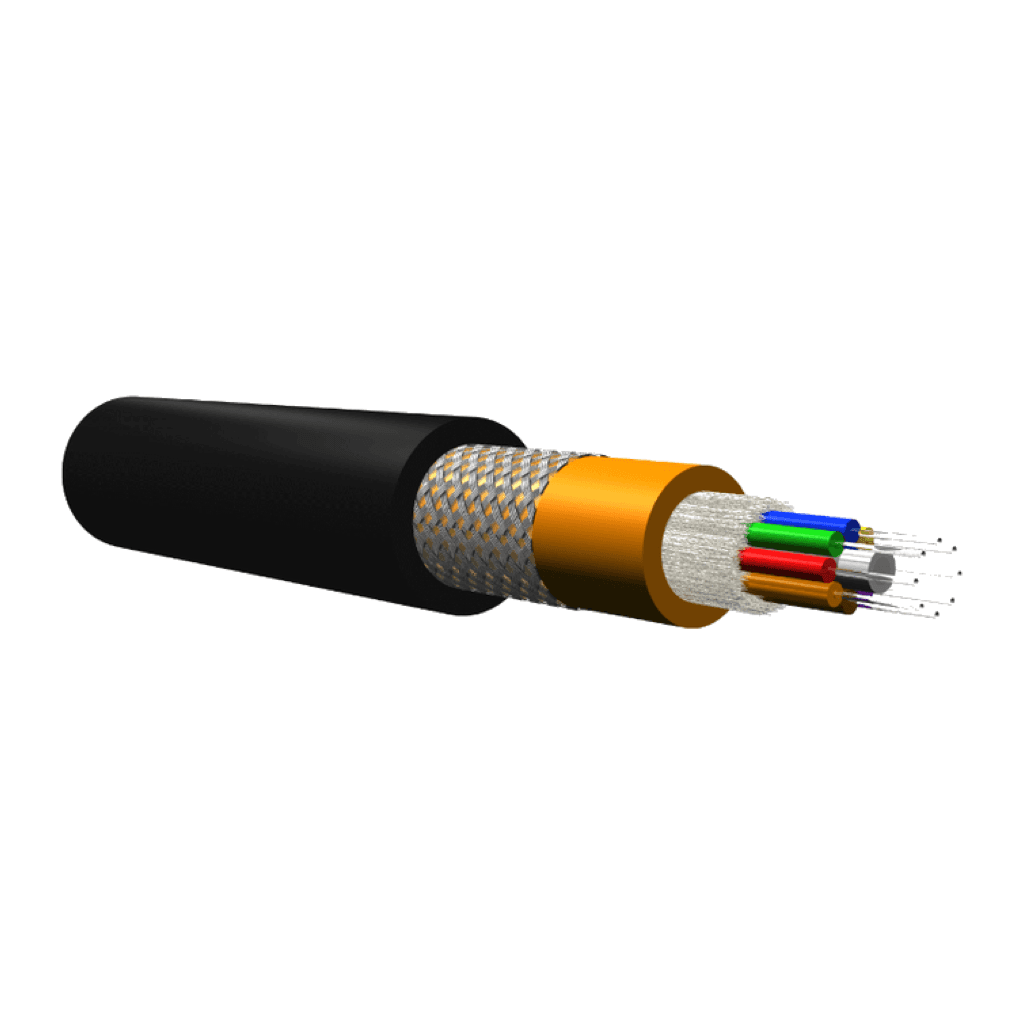

Percon's FO410DMPUR/ARMOURED is a tactical broadcast cable from the Barcelona cable maker: four tight-buffered G.657.A1 single-mode fibres (9/125 µm) under metallic armour and a black PUR outer jacket. Percon specifies it for indoor, outdoor and mobile use: gel-free for easy stripping, rodent-protected, flame-retardant, low-smoke and halogen-free. The jacket print rates it from −40 °C to 70 °C. This drum holds 250 m.
Single-mode optics are typically rated for kilometres, so 250 m is well within their reach. Pair it with single-mode modules at both ends, such as 1000BASE-LX or 10GBASE-LR optics or the single-mode NovaStar SFPs fitted in our Blackmagic Mini Converter Optical Fiber 12G units; the four fibres allow two duplex links at once. Use it between a remote camera position, a stage and the production gallery.
Highlights
- 01Four G.657.A1 single-mode fibres (9/125 µm), tight-buffered and gel-free
- 02Metallic armour and PUR outer jacket for indoor, outdoor and mobile use, rodent-protected
- 03Halogen-free, low-smoke and flame-retardant construction
- 04Jacket printed for −40 °C to 70 °C operation
- 05Four fibres carry two duplex links at once, for Ethernet or SDI over single-mode optics
FAQ
Questions about this gear
Single-mode optics at both ends, such as 1000BASE-LX or 10GBASE-LR modules in switches and media converters, or our Blackmagic Mini Converter Optical Fiber 12G units, which carry single-mode NovaStar SFPs. Multimode 850 nm modules need multimode fibre instead.
Termination is not listed on this page. Confirm the connector type with us before the job so patch leads and SFPs match.
Percon specifies it for indoor, outdoor and mobile use, with metallic armour, a PUR jacket and rodent protection. Use cable ramps where vehicles cross it.
It is a bend-insensitive single-mode fibre that remains compatible with standard G.652.D single-mode links, so tighter bends cost less light.
