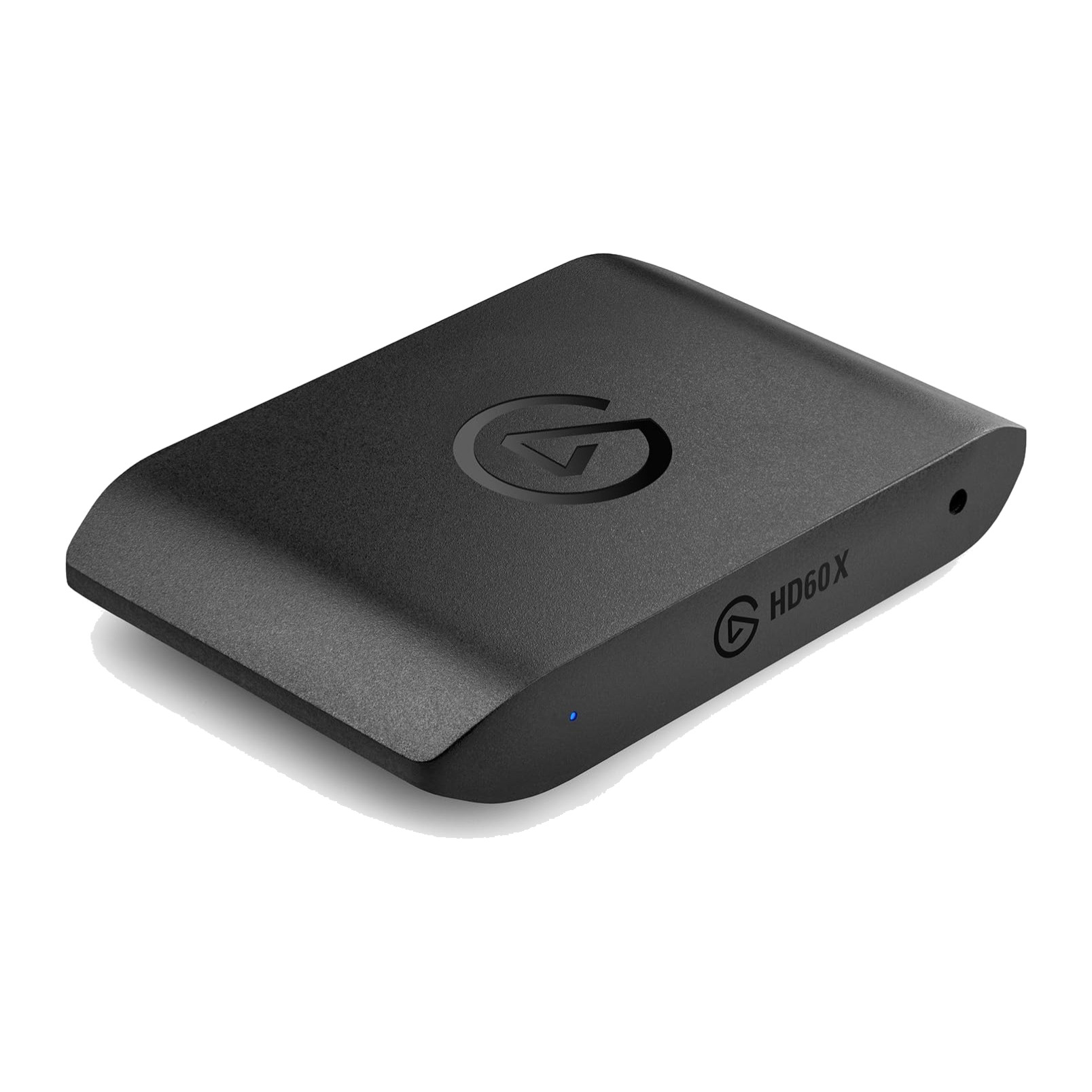

Hover to zoomElgato HD60 X Capture Card
Choose your dates · Prices + VAT
What's in the case
Content list
- 1×Elgato HD60 X
- 1×HDMI 2.0 cable
- 1×USB-C to USB-A cable
The gear
About this gear
The Elgato HD60 X is a USB capture device with an HDMI 2.0 input and pass-through output. It captures up to 4K30, 1440p60 or 1080p60, including 10-bit HDR capture up to 1080p60 on Windows, while passing up to 4K60 HDR10, 1440p120 or 1080p240 with VRR to the player's monitor. It is a UVC device, so Windows and macOS use it without drivers, and a 3.5 mm line input lets you mix in commentary or chat audio.
The usual job is a console or gaming PC feeding both a screen and a capture computer running OBS or Elgato's own software, for streams, VOD recording or an observer feed. Elgato has discontinued the HD60 X in favour of the 4K S, but it remains a straightforward 1080p60 capture source.
Highlights
- 01Captures up to 4K30, 1440p60 or 1080p60 over USB 3.0 Type-C (5Gbps)
- 02Pass-through up to 4K60 HDR10, 1440p120 or 1080p240, with VRR
- 0310-bit HDR capture up to 1080p60 (Windows only)
- 04UVC device: driver-free on Windows and macOS
- 053.5 mm line input to mix in commentary or chat audio
FAQ
Questions about this gear
No. Capture tops out at 4K30, 1440p60 or 1080p60. 4K60 is available on the pass-through output only.
Yes. As a UVC device it works on macOS without drivers; HDR capture is Windows-only.
No, it accepts unencrypted HDMI only, so HDCP must be off at the source. PlayStation consoles have a setting for this.
