Hover to zoomBlackmagic ATEM 2 M/E Constellation HD
Choose your dates · Prices + VAT
What's in the case
Content list
- 1×Blackmagic ATEM 2 M/E Constellation HD
- 1×IEC mains power cable
The gear
About this gear

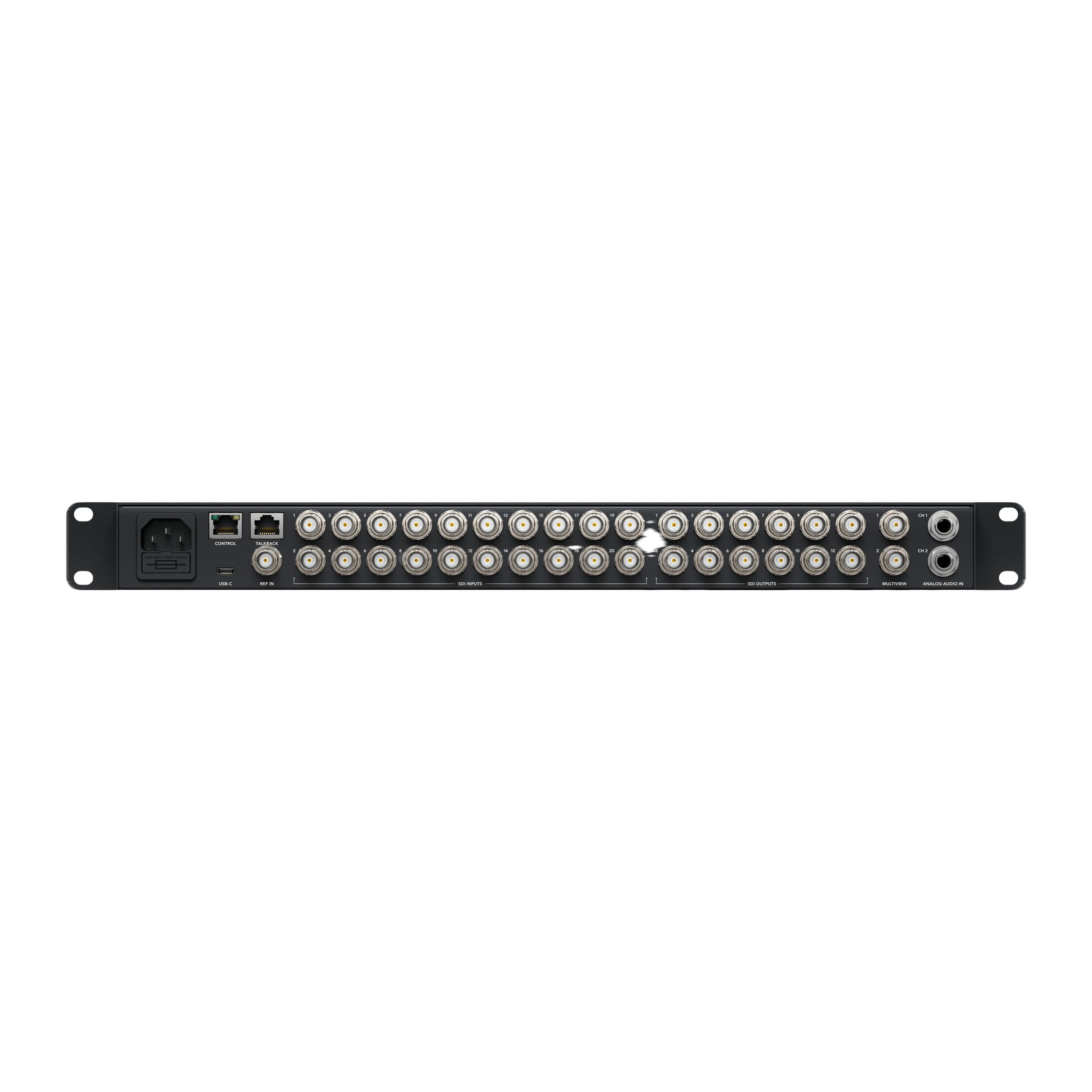

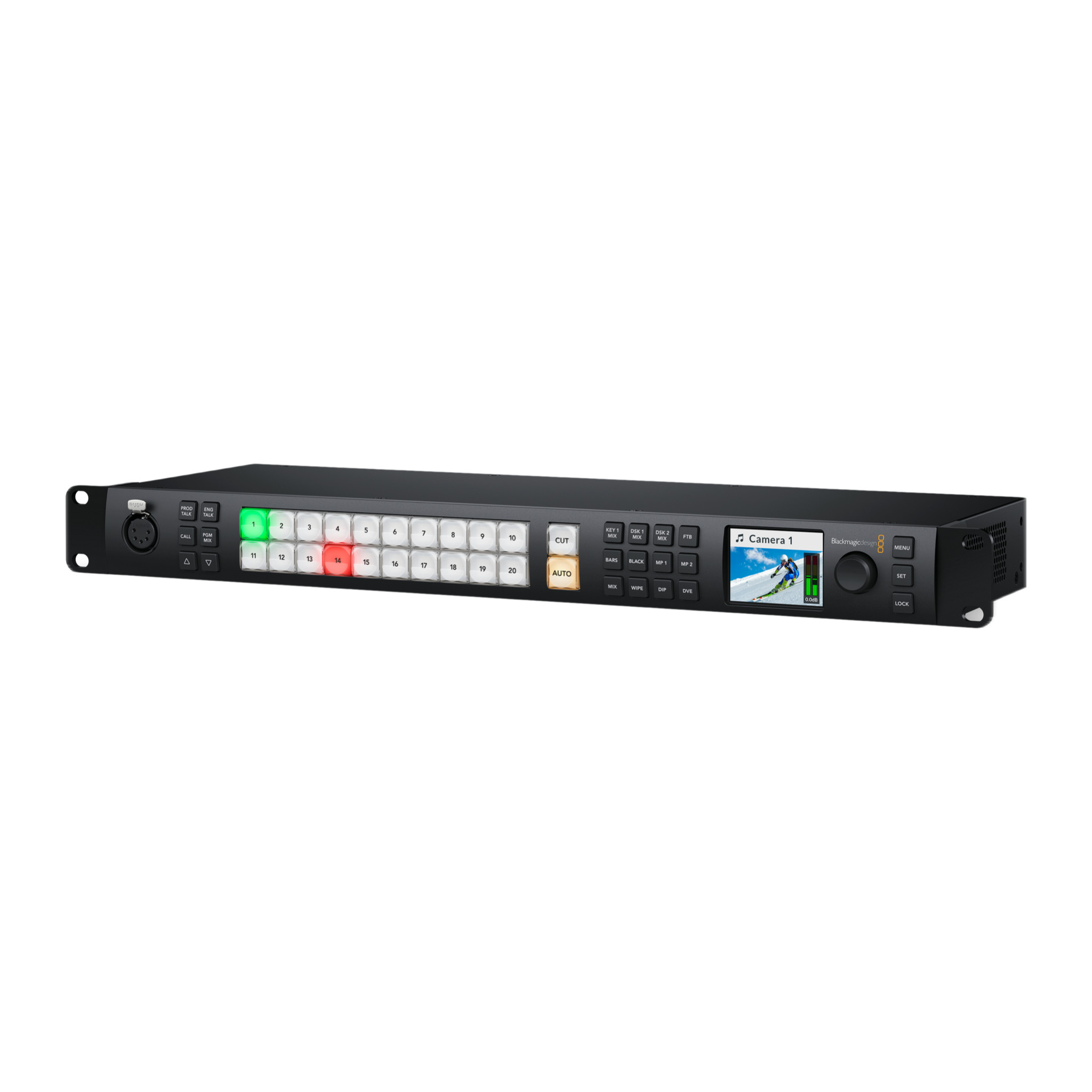

The ATEM 2 M/E Constellation HD is a 1RU broadcast switcher with 20 3G-SDI inputs, 12 SDI aux outputs and two multiviewers, each configurable up to 16 views. It runs two mix/effect buses with 8 upstream keyers (all with advanced chroma), 2 downstream keyers, 2 DVEs, a SuperSource and 2 media players holding 40 stills. Audio goes through a 48-channel Fairlight mixer with 6-band parametric EQ and dynamics. Formats run from 720p50 to 1080p60.

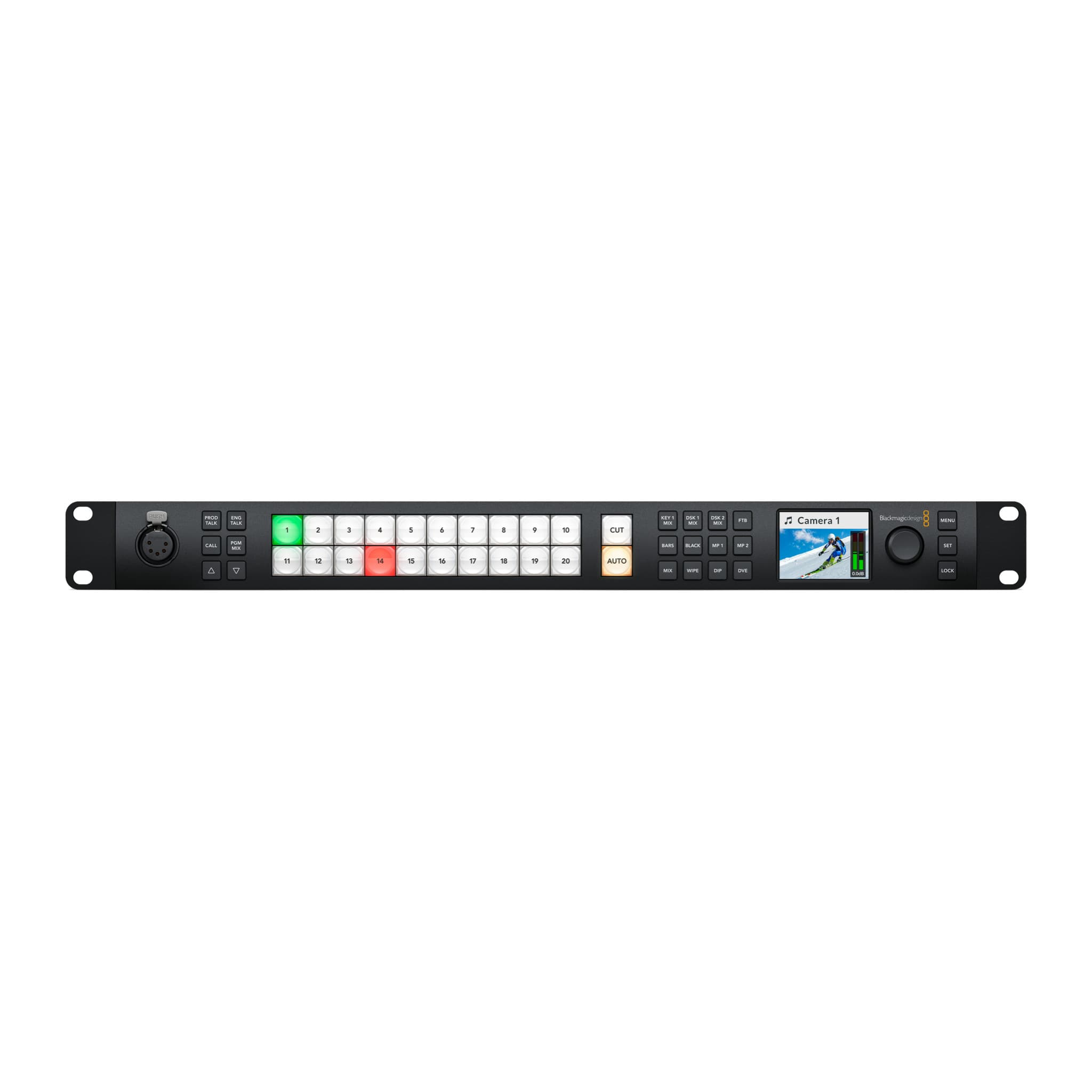

There is no full control surface on the unit: it is driven from ATEM Software Control on a Mac or PC, or from an ATEM Advanced Panel. The second M/E lets you build a separate mix for an in-venue screen or a sponsor feed while the main programme runs, and the 12 aux outputs cover LED walls, recorders and stream encoders. At one rack unit it fits easily into a compact flight-case rack.
Highlights
- 0120 x 3G-SDI inputs and 12 SDI aux outputs in a single rack unit
- 02Two M/E buses with 8 upstream keyers (advanced chroma), 2 downstream keyers and 2 DVEs
- 03Two multiview outputs, each configurable to 16, 13, 10, 7 or 4 views
- 0448-channel Fairlight audio mixer with 6-band parametric EQ and dynamics
- 05Internal 100-240V AC power supply, 52W power usage
FAQ
Questions about this gear
No. The switcher is controlled from the free ATEM Software Control app on Mac or Windows over Ethernet, or from an ATEM hardware panel, which is not part of this item.
No. It is an HD switcher handling 720p, 1080i and 1080p formats up to 1080p60. 4K work needs one of the ATEM Constellation 4K models.
Embedded SDI audio from every input feeds the 48-channel Fairlight mixer. There are also two balanced 1/4 inch jack inputs for analogue sources and a 5-pin XLR talkback connection.
It has an internal 100-240V AC supply, so it runs from a standard mains cable with no external power brick.
