Hover to zoomBlackmagic Video Assist 5" 12G HDR
Choose your dates · Prices + VAT
What's in the case
Content list
- 1×Blackmagic Video Assist 5" 12G HDR
- 1×12 V power supply
- 2×NP-F970 battery
The gear
About this gear

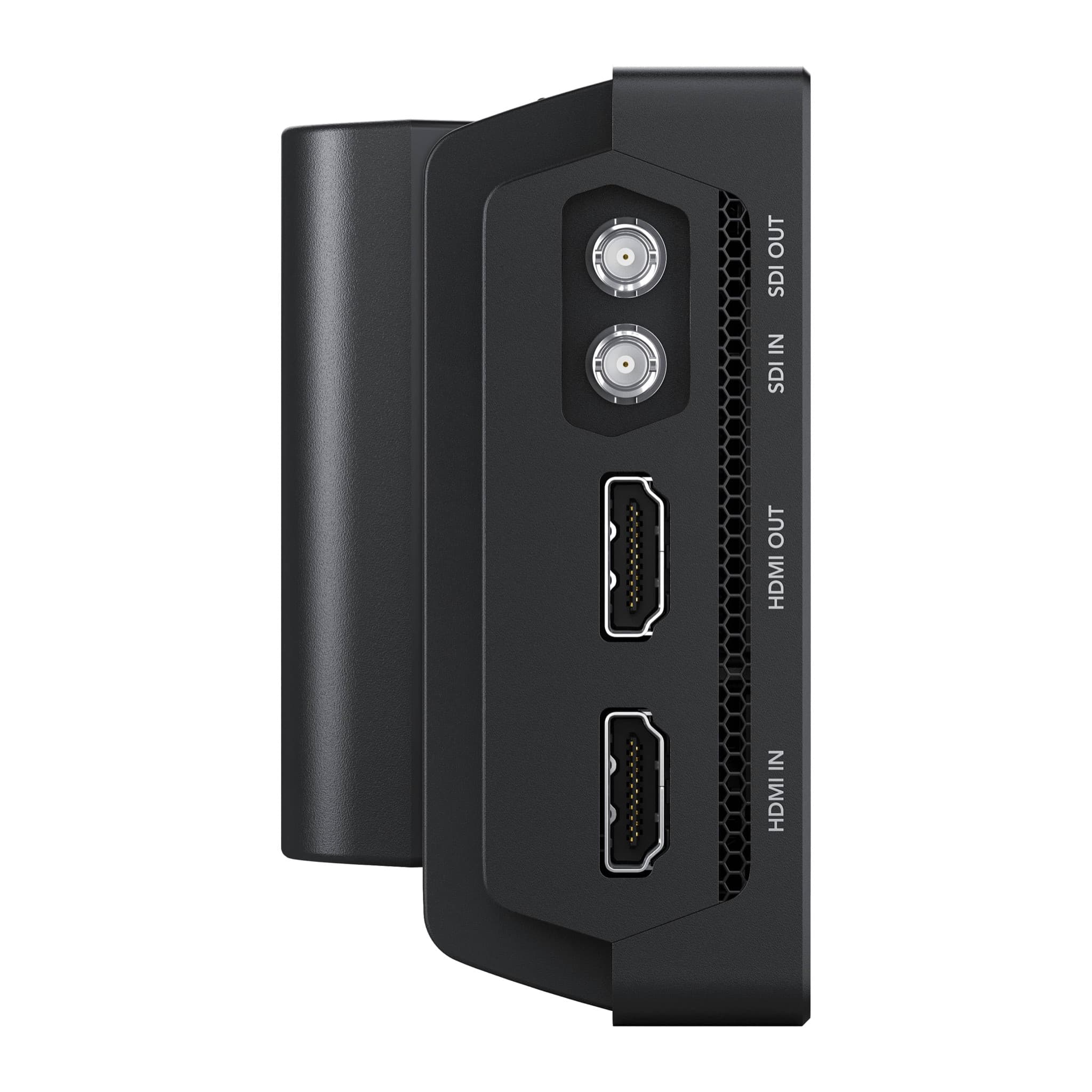

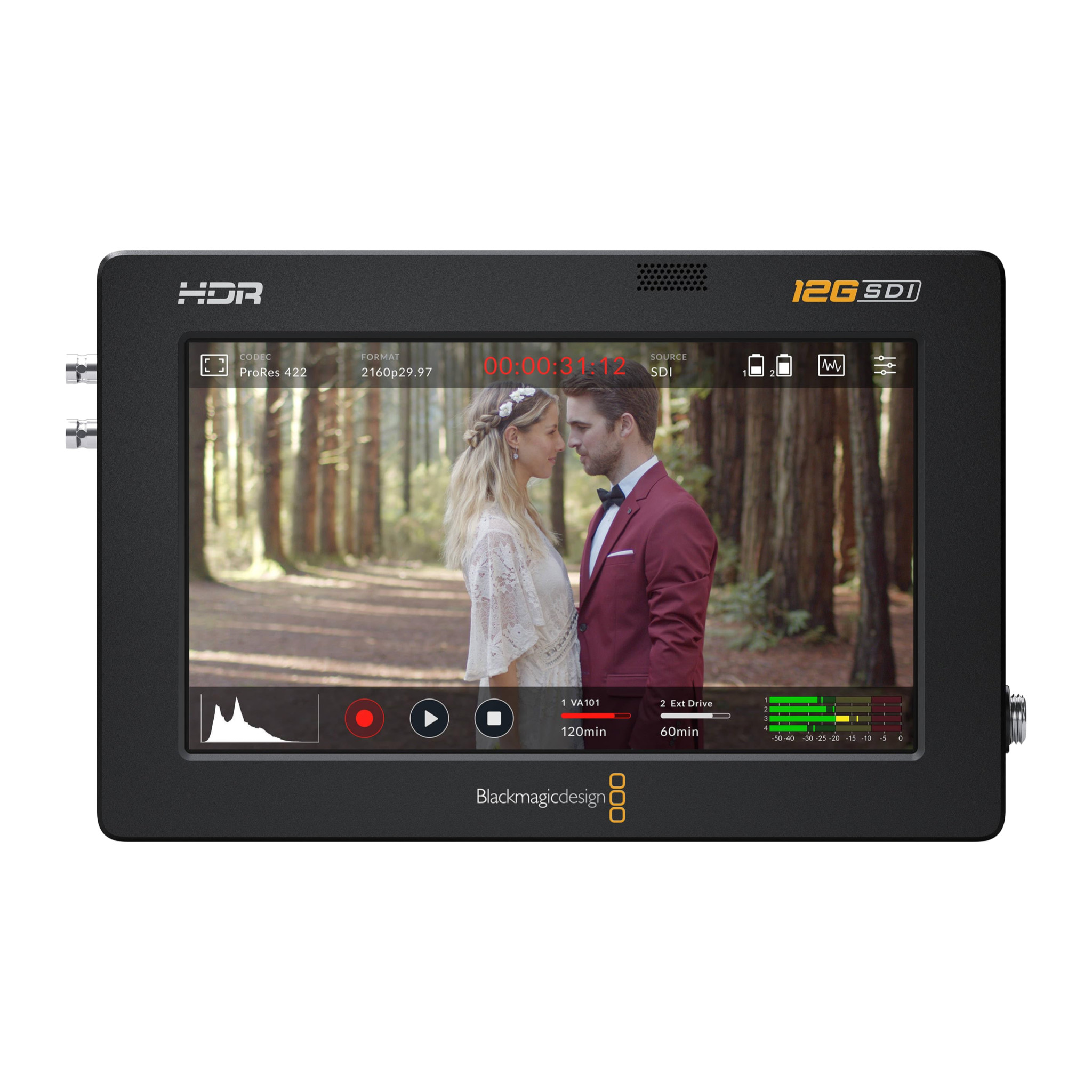

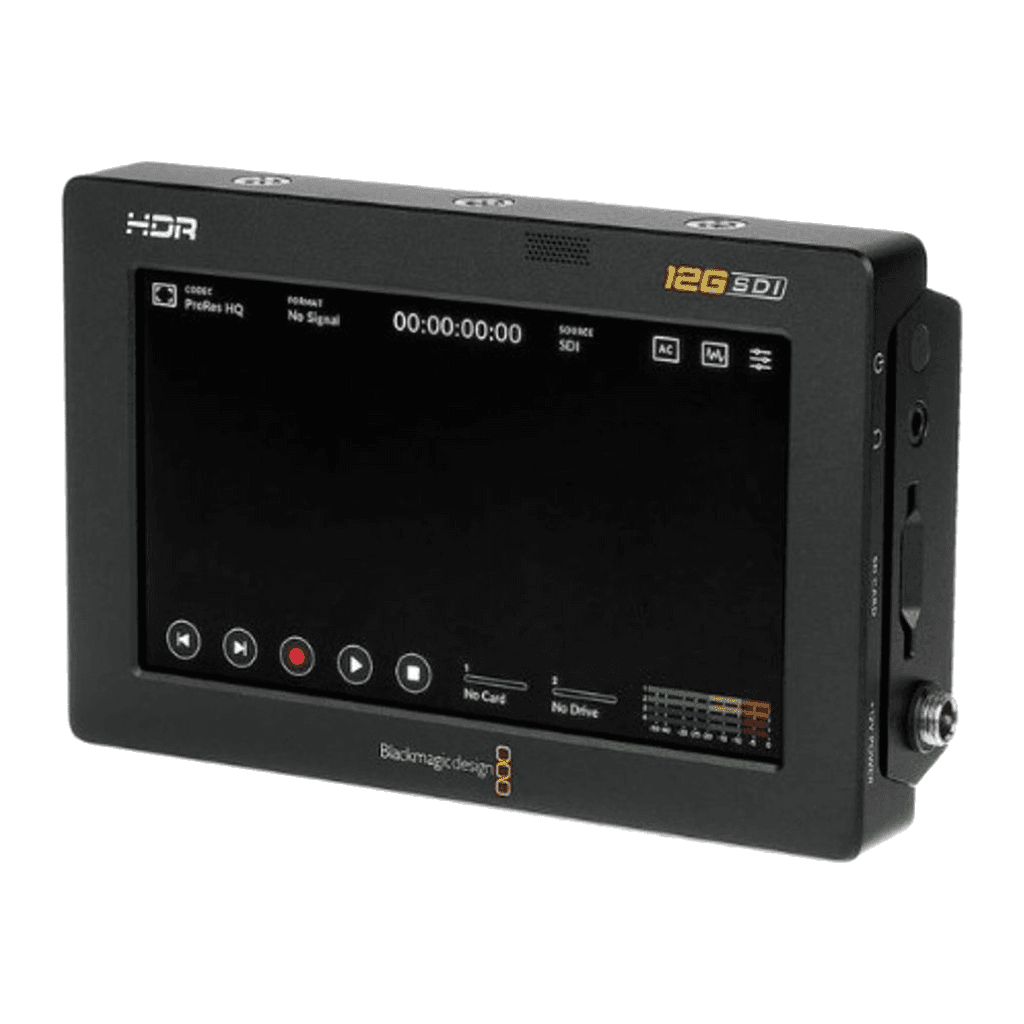

A 5-inch monitor and recorder with a 1920 x 1080 touchscreen rated at 2500 nits, bright enough for outdoor use and able to show HDR10 and HLG. It has 12G-SDI and HDMI 2.0a inputs and outputs, and records 10-bit 4:2:2 ProRes or DNxHR up to 2160p60 to a UHS-II SD card or a USB-C drive, plus Blackmagic RAW from supported cameras such as the Sony FX3 and FX30.
On set it works as a bright director's or focus monitor with waveform, parade, vectorscope, histogram, 3D LUTs and focus assist, or as a backup and proxy recorder next to the camera originals. Audio is embedded SDI or HDMI only, with a headphone jack for monitoring. Power comes from the 12 V supply or Sony NP-F style batteries.
Highlights
- 015" 1920 x 1080 touchscreen, 2500 nits, P3 colour, HDR10 and HLG
- 0212G-SDI and HDMI 2.0a in and out, formats up to 2160p60
- 03Records ProRes 422 HQ to Proxy or DNxHR to UHS-II SD or a USB-C drive
- 04Blackmagic RAW from supported cameras, including Sony FX3 and FX30
- 05Scopes, 3D LUTs and focus assist; runs on 12 V DC or Sony NP-F style batteries
FAQ
Questions about this gear

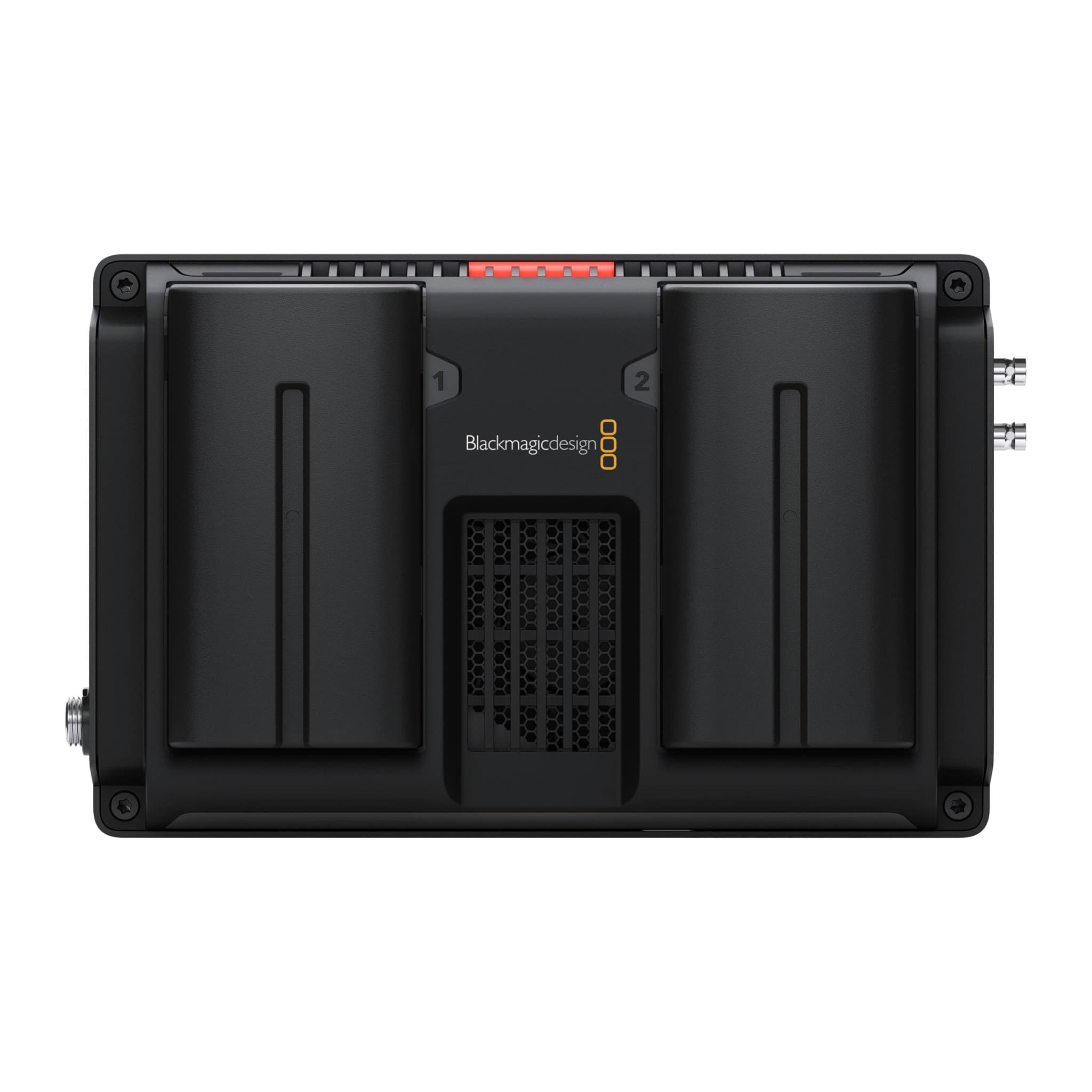

Sony NP-F (L-series) style batteries, which are not part of this listing. It also runs from the supplied 12 V power supply.

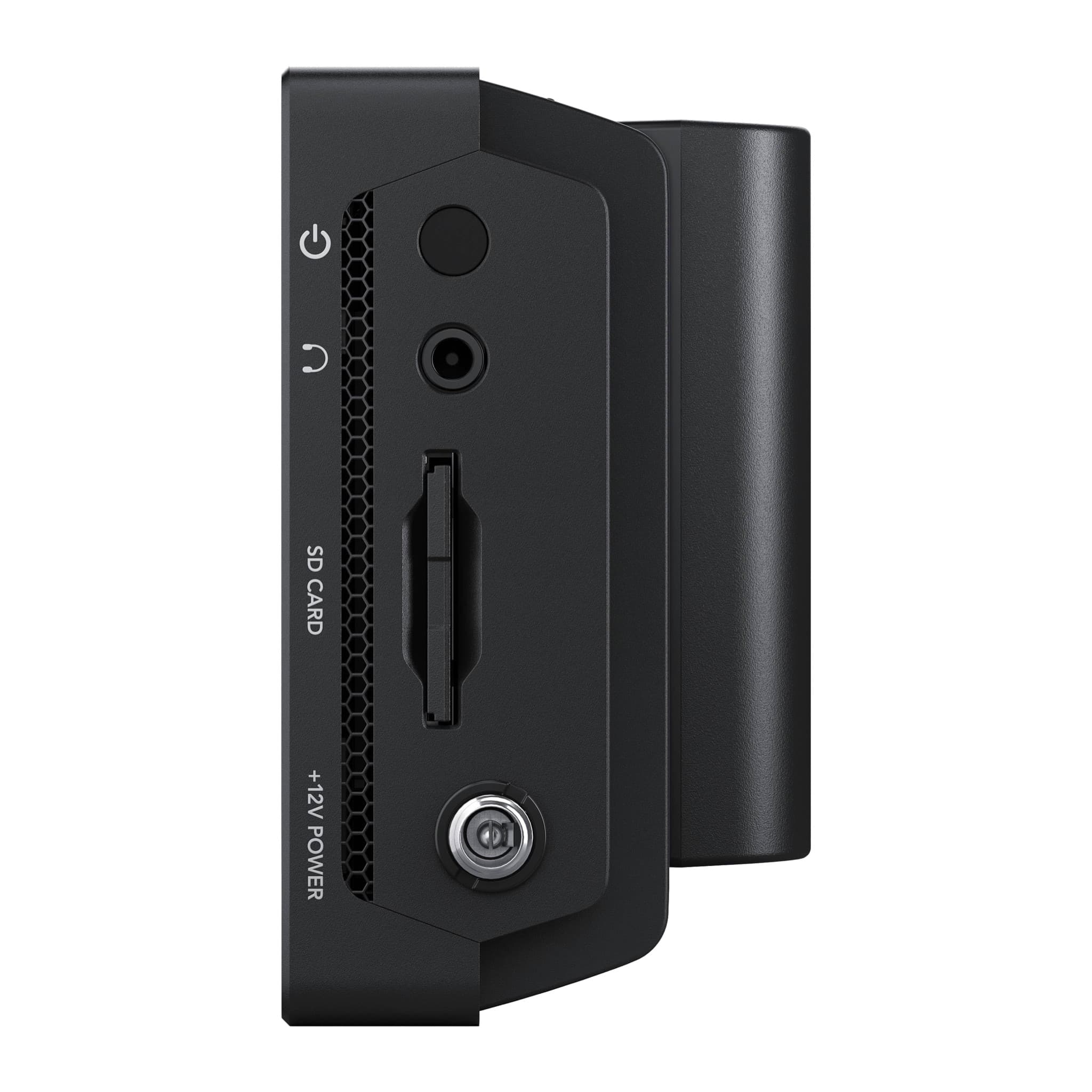

One UHS-II SD slot, or an external drive over USB-C 3.1 Gen 1. Use UHS-II cards for Ultra HD; standard SD cards are fine for HD.
Yes, from cameras on Blackmagic's supported list, which includes the Sony FX3 and FX30, Panasonic S5II and GH6, Nikon Z6 II and several Fujifilm bodies.
No. The 5-inch model records embedded SDI or HDMI audio and has a 3.5 mm headphone output; the 7-inch model is the one with mini XLR inputs.
