Hover to zoomBlackmagic Micro Converter BiDirectional SDI/HDMI 12G
Choose your dates · Prices + VAT
What's in the case
Content list
- 1×Blackmagic Micro Converter BiDirectional SDI/HDMI 12G
- 1×5 V USB-C power supply
The gear
About this gear

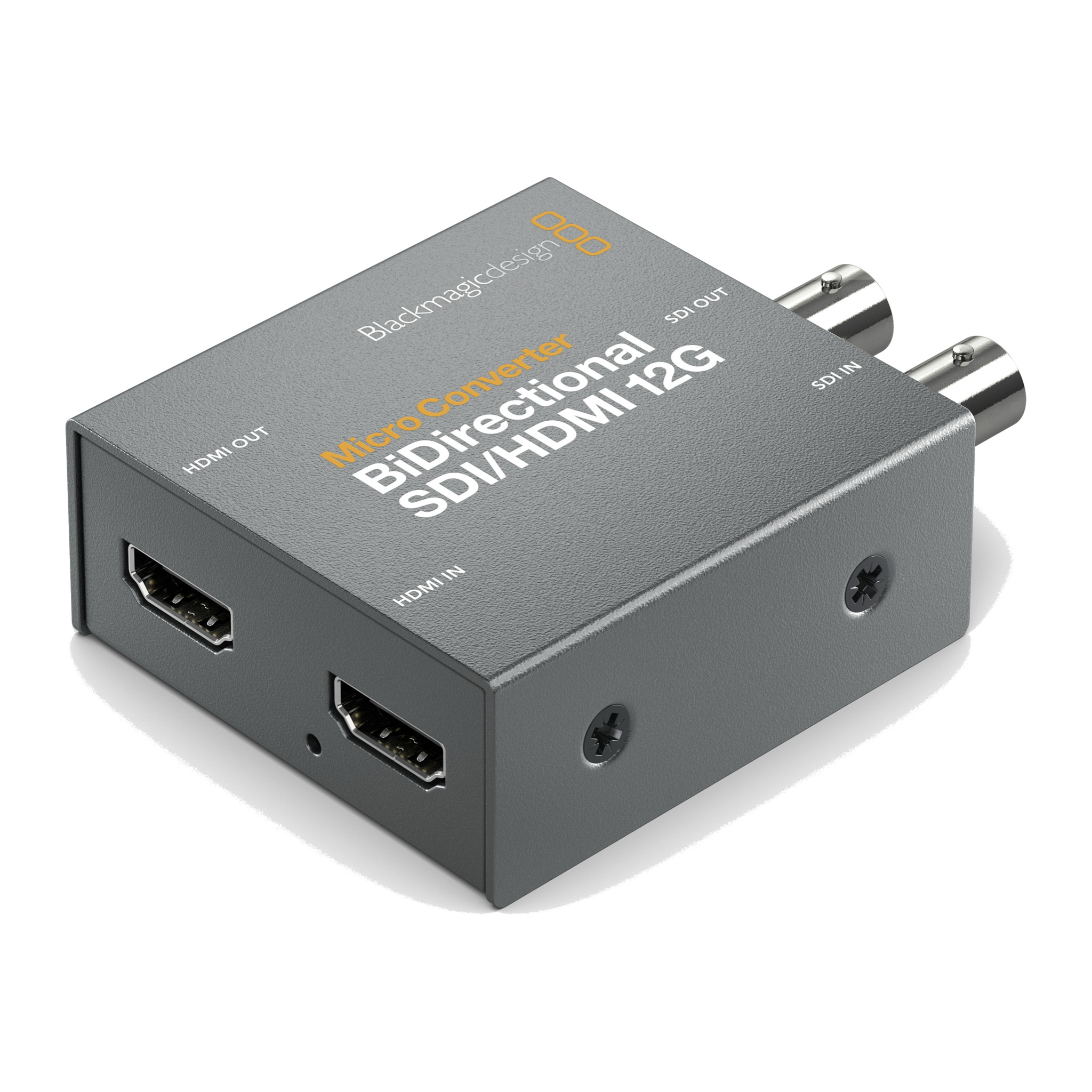

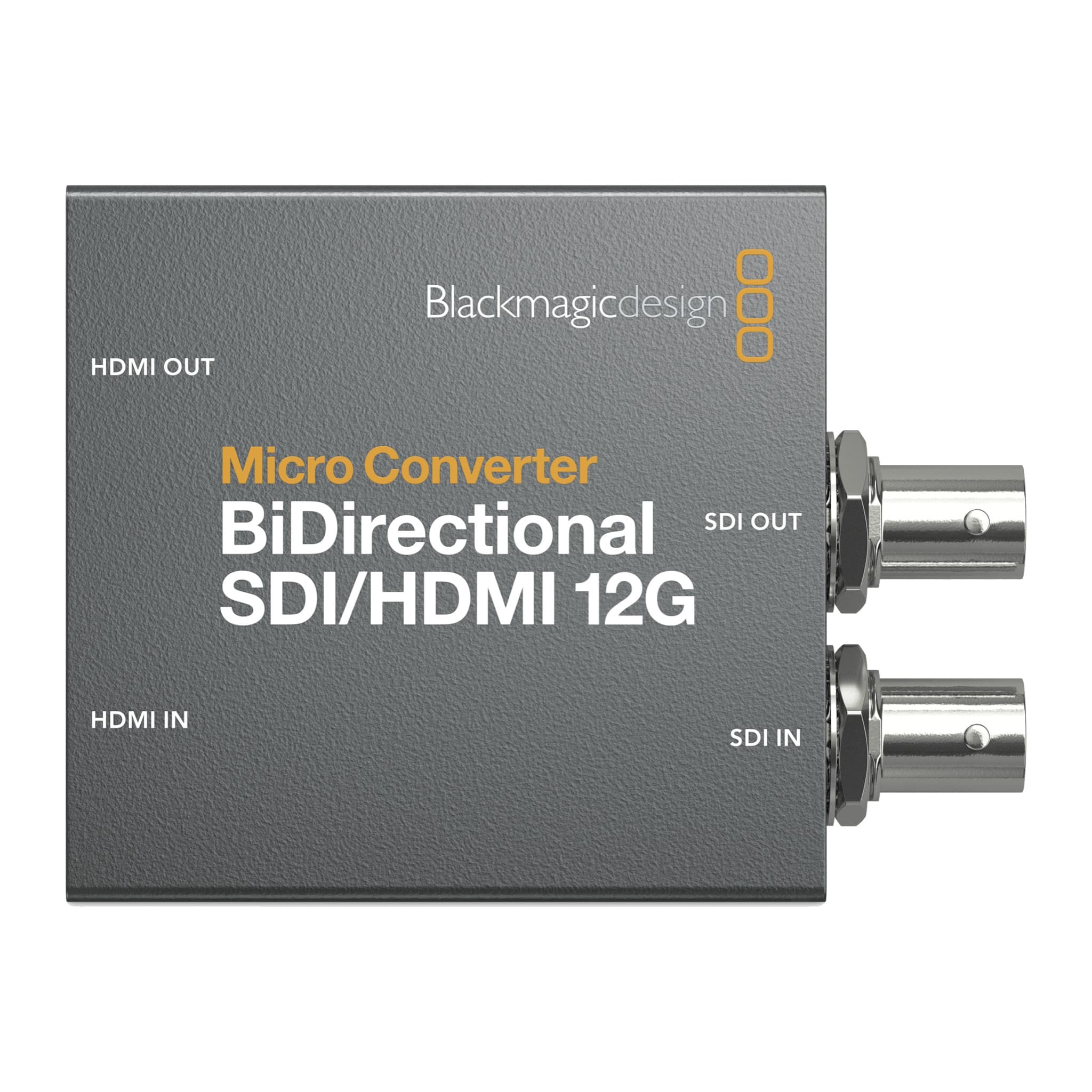

Two converters share one small metal box here: SDI in to HDMI out, and HDMI in to SDI out, both running at the same time. The SDI ports are multi-rate 12G (270 Mb up to 12G), so the unit covers SD and HD through Ultra HD and DCI 4K up to 60p, and the HDMI 2.0 connectors keep pace. A 33-point 3D LUT can be loaded with Blackmagic's setup utility to calibrate a monitor, and power arrives over USB-C at 5 W maximum.
On a 4K show it bridges an HDMI camera, laptop or playback machine into the SDI system, while the opposite path takes a router or switcher feed out to a TV or projector. Because it draws so little power, a laptop or monitor USB-C port can run it; the supplied 5 V adapter covers everything else.
Highlights
- 01Simultaneous SDI-to-HDMI and HDMI-to-SDI conversion in one unit
- 02Multi-rate 12G-SDI (270 Mb, 1.5G, 3G, 6G, 12G), up to 2160p60 and DCI 4Kp60
- 03HDMI 2.0 type A input and output
- 0433-point 3D LUT for monitor calibration, loaded via Blackmagic's setup utility
- 05USB-C powered, 5 W max; 5 V USB-C power supply included
FAQ
Questions about this gear
Yes. SDI to HDMI and HDMI to SDI are separate paths that run simultaneously, so one unit can feed a monitor from SDI while sending a different HDMI source into SDI.
Yes. The SDI connections are multi-rate (270 Mb, 1.5G, 3G, 6G and 12G), so it handles SD and HD as well as Ultra HD and DCI 4K up to 60p.

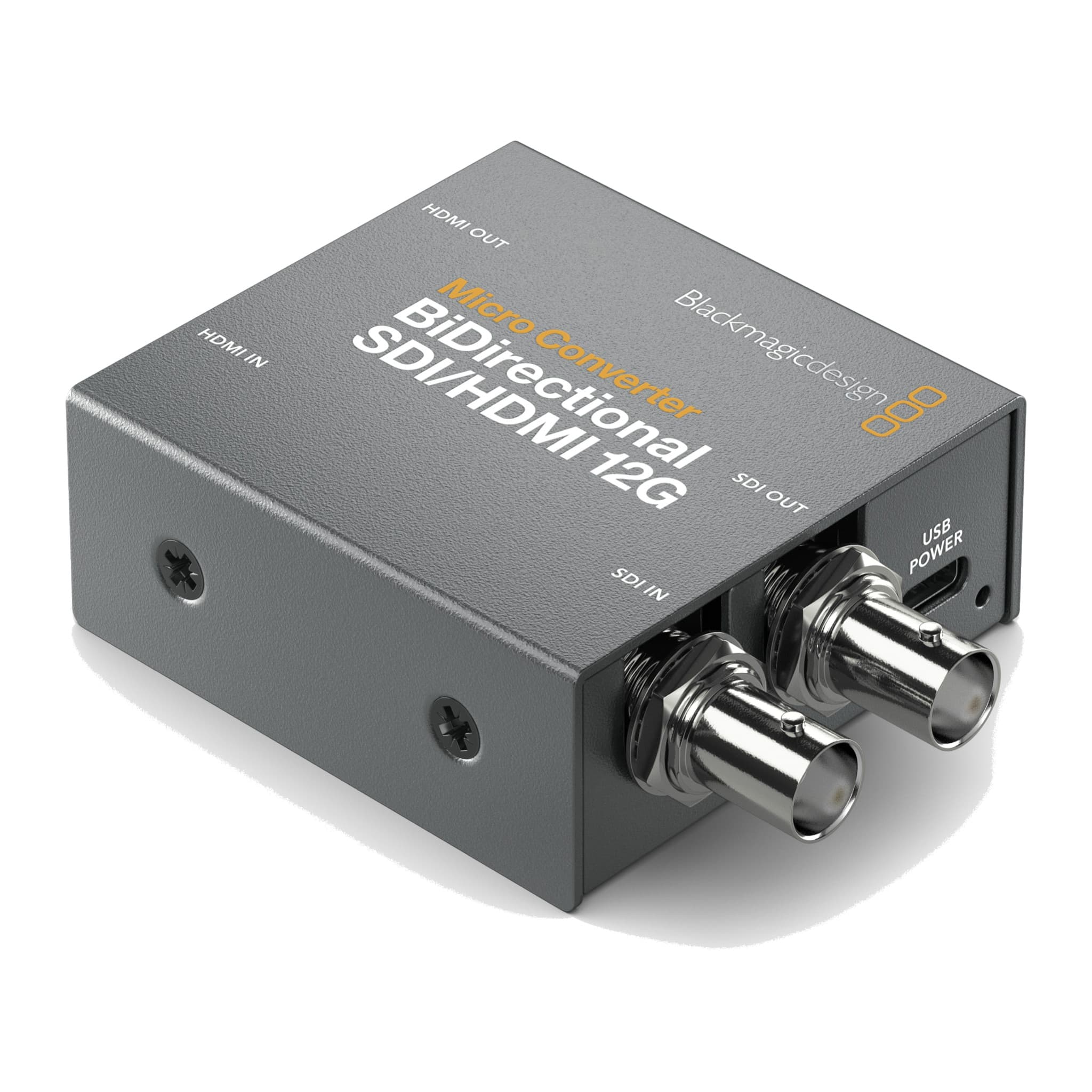

Through its USB-C port (4.4 to 5.25 V, 5 W max). Use the supplied 5 V USB-C adapter, or a USB-C port on a laptop, monitor or projector.
Yes. A 33-point 3D LUT can be loaded with Blackmagic's converter setup utility, for example to calibrate a client or stage monitor.
