Hover to zoomBlackmagic Mini Converter SDI Distribution
Choose your dates · Prices + VAT
What's in the case
Content list
- 1×Blackmagic Mini Converter SDI Distribution
- 1×12 V power supply
The gear
About this gear

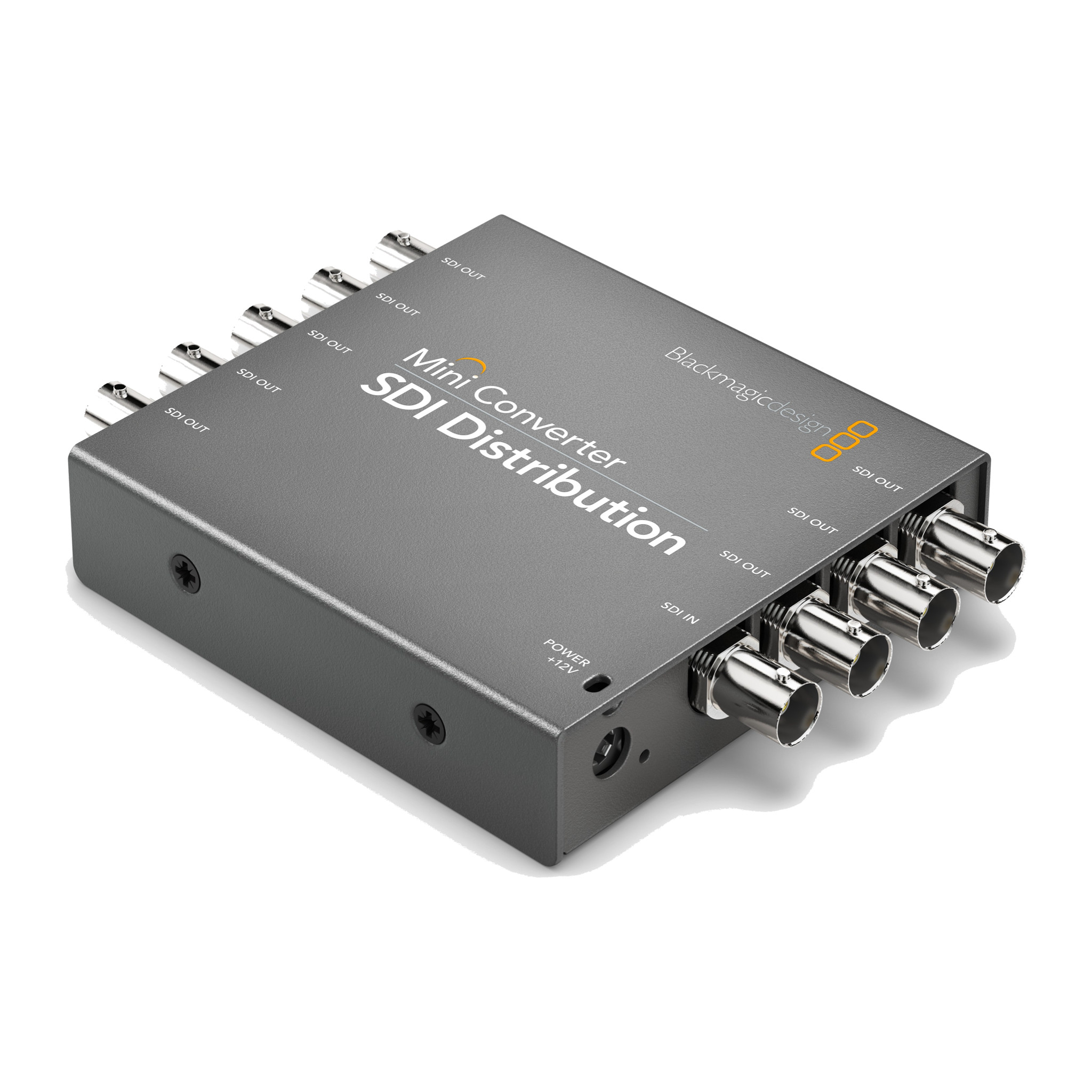

A 1-in, 8-out SDI distribution amplifier in Blackmagic's Mini Converter housing. It auto-detects SD, HD and 3G-SDI signals up to 1080p60 and re-clocks all eight outputs, which carry ASI, ancillary data and embedded audio through untouched. It is powered by the included 12 V supply, draws about 4.8 W and accepts 12 to 30 V.
Use it to split one programme or camera feed to several places at once: confidence monitors, recorders, encoders, the projection desk and a press feed, without daisy-chaining loop-throughs. Because every output is re-clocked, each destination gets a clean copy of the signal even when the downstream cable runs differ. Firmware can be updated through its USB port.
Highlights

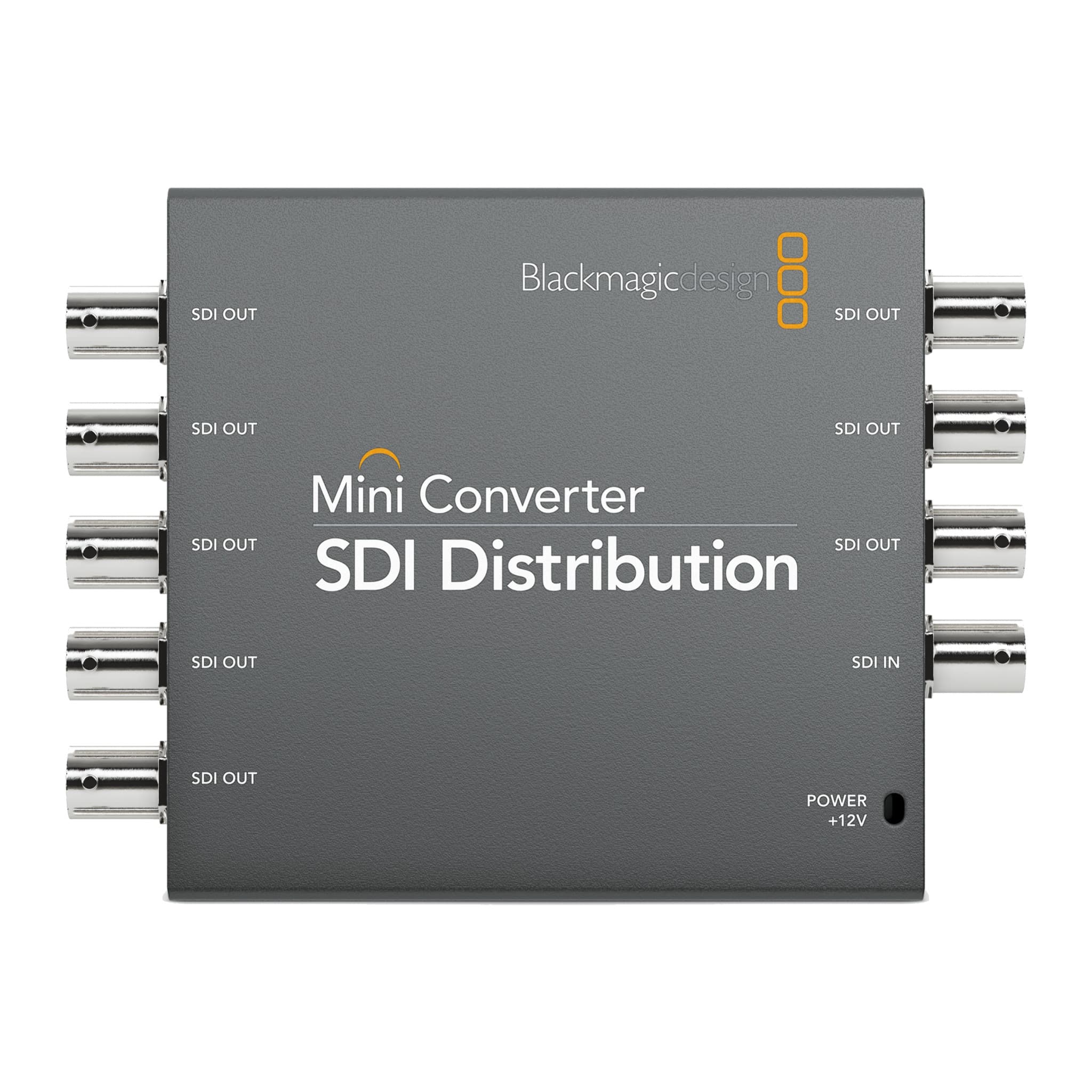

- 01One SDI input distributed to eight re-clocked SDI outputs
- 02Auto-switching SD, HD and 3G-SDI up to 1080p60
- 03Passes ASI, ancillary data and embedded audio
- 04SMPTE 259M, 292M, 296M, 372M and 425M compliant
- 0512 V supply included; about 4.8 W, 12 to 30 V input range
FAQ
Questions about this gear
No. It handles SD, HD and 3G-SDI up to 1080p60. Ultra HD signals need a 6G or 12G distribution amplifier.
Yes. Each output carries the same re-clocked copy of the input, including embedded audio and ancillary data.
From the included 12 V power supply; the power input accepts 12 to 30 V DC.
