Hover to zoomBlackmagic Videohub 40x40 12G
Choose your dates · Prices + VAT
What's in the case
Content list
- 1×Blackmagic Videohub 40x40 12G
- 2×IEC mains power cable
The gear
About this gear

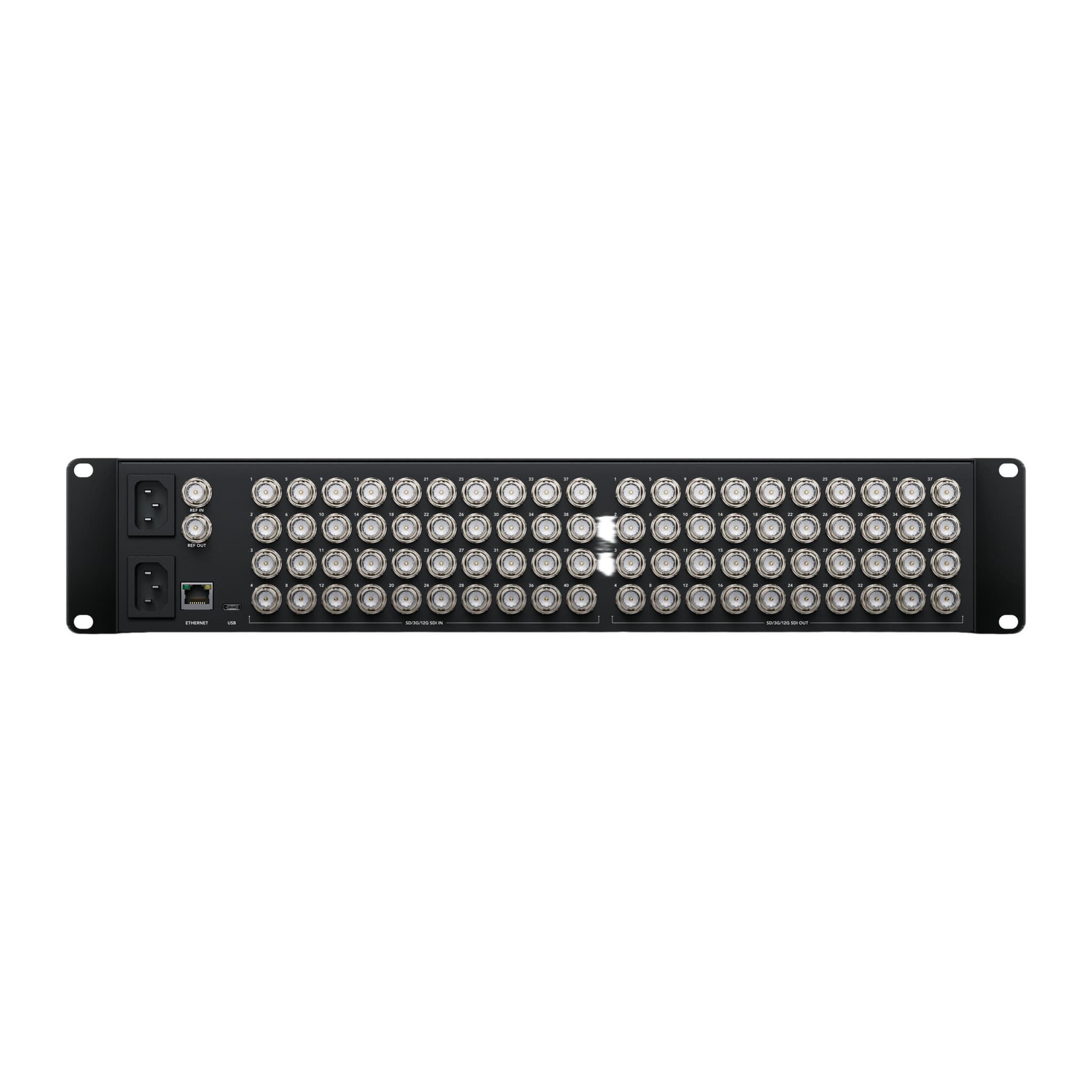

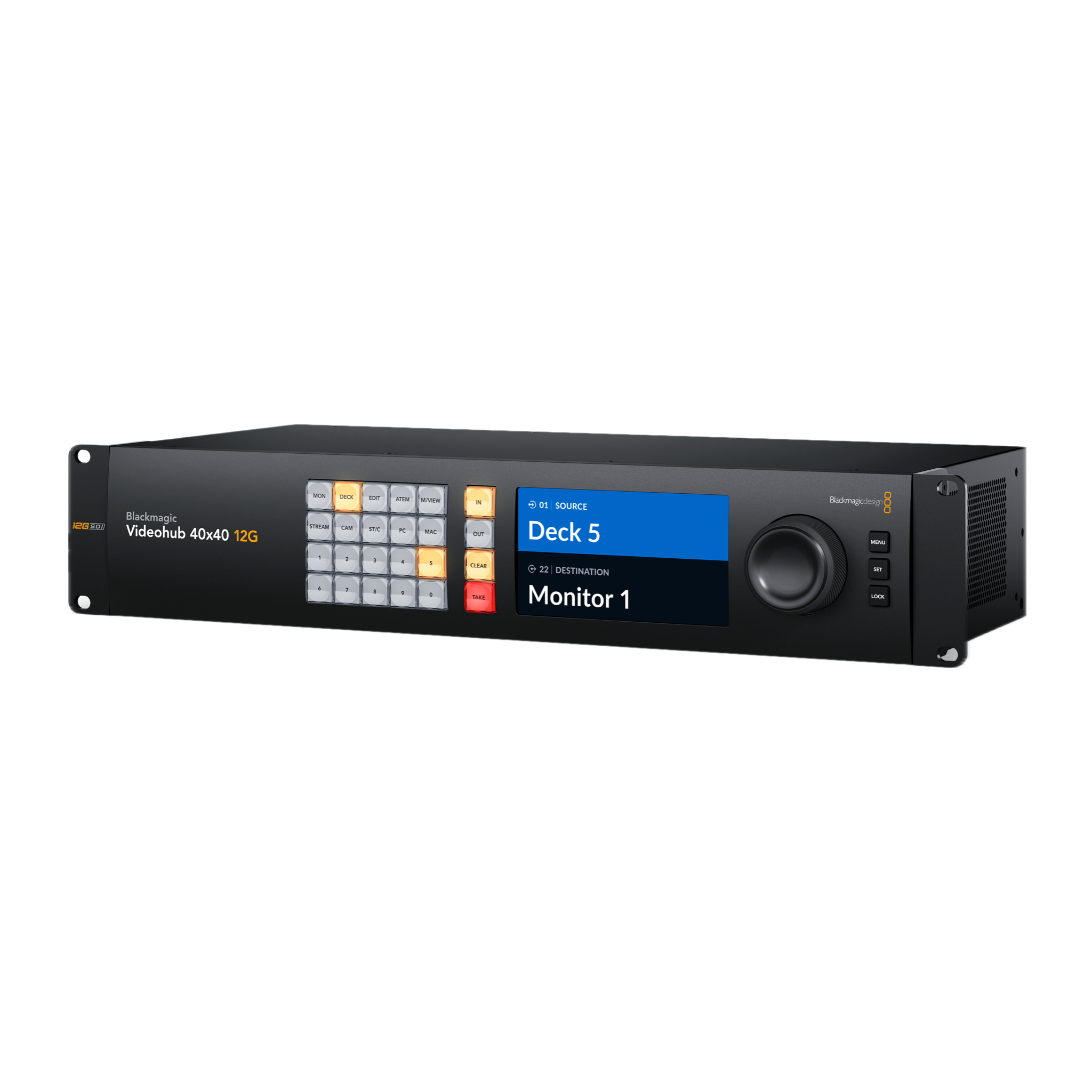

Blackmagic's Videohub 40x40 12G is a 2RU SDI router with 40 inputs and 40 outputs, all multi-rate 12G-SDI covering SD, HD and Ultra HD up to 2160p60, plus DVB-ASI. Any input can go to any output, or one source to several outputs at once, and every output is re-clocked. The front panel has 24 buttons, a search dial and a 5-inch colour LCD that shows live video of the sources, so routes can be set at the rack without a computer.
In an OB or gallery it sits at the centre of the signal flow: cameras, replay, graphics and playback in; mixer inputs, multiviewers, recorders and encoders out. Routes can also be changed over Ethernet from Blackmagic's free Videohub software for Mac and Windows, from Videohub hardware panels or from third-party control systems.
Highlights
- 0140 x 40 multi-rate 12G-SDI: SD, HD and Ultra HD up to 2160p60, plus DVB-ASI
- 02Re-clocking on every SDI output; one input can feed any number of outputs
- 03Front panel with 24 buttons, search dial and 5-inch colour LCD showing live source video
- 04Ethernet and USB-C; free Videohub software for Mac and Windows, Videohub Ethernet protocol
- 05Two internal 100-240 V AC supplies, 46.5 W max; routes are kept through a power cut
FAQ
Questions about this gear
Yes. Blackmagic's free Videohub software runs on Mac and Windows over Ethernet, and the router also works with Videohub Smart Control Pro and Master Control Pro panels or third-party systems using the Videohub Ethernet protocol.
Yes. Every input and output is multi-rate and switches automatically between 270 Mb SD, 1.5G, 3G, 6G and 12G-SDI.
Blackmagic's power fail protection keeps the crosspoint connections, so routes return as they were. It has two internal mains supplies and draws 46.5 W at most.
Two rack units high, 19 inches wide, 15.75 in (400 mm) deep and 22 lb (about 10 kg).
