What's in the case
Content list
- 1×Blackmagic ATEM SDI Extreme ISO
- 1×12V power supply
- 1×SDI cable
The gear
About this gear

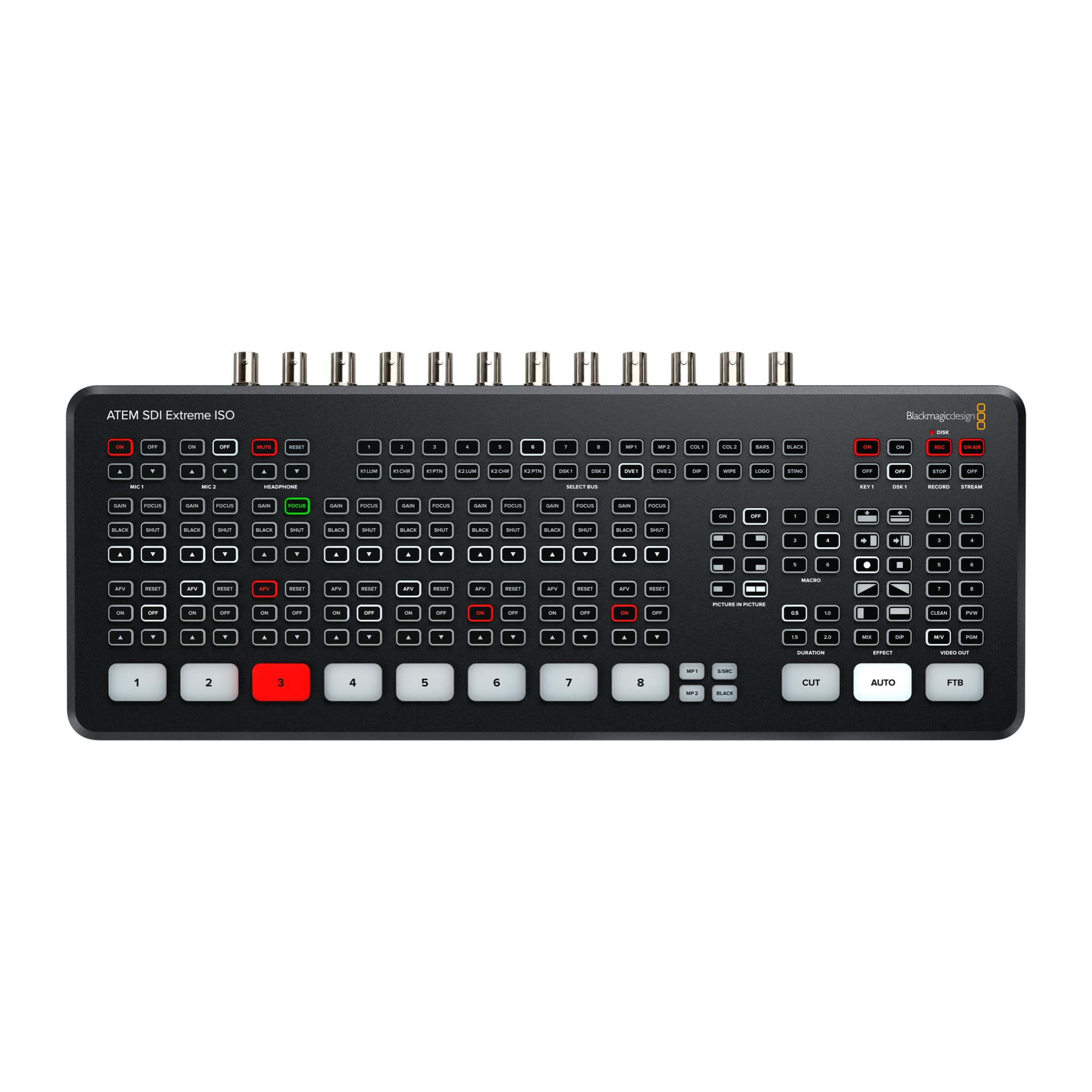

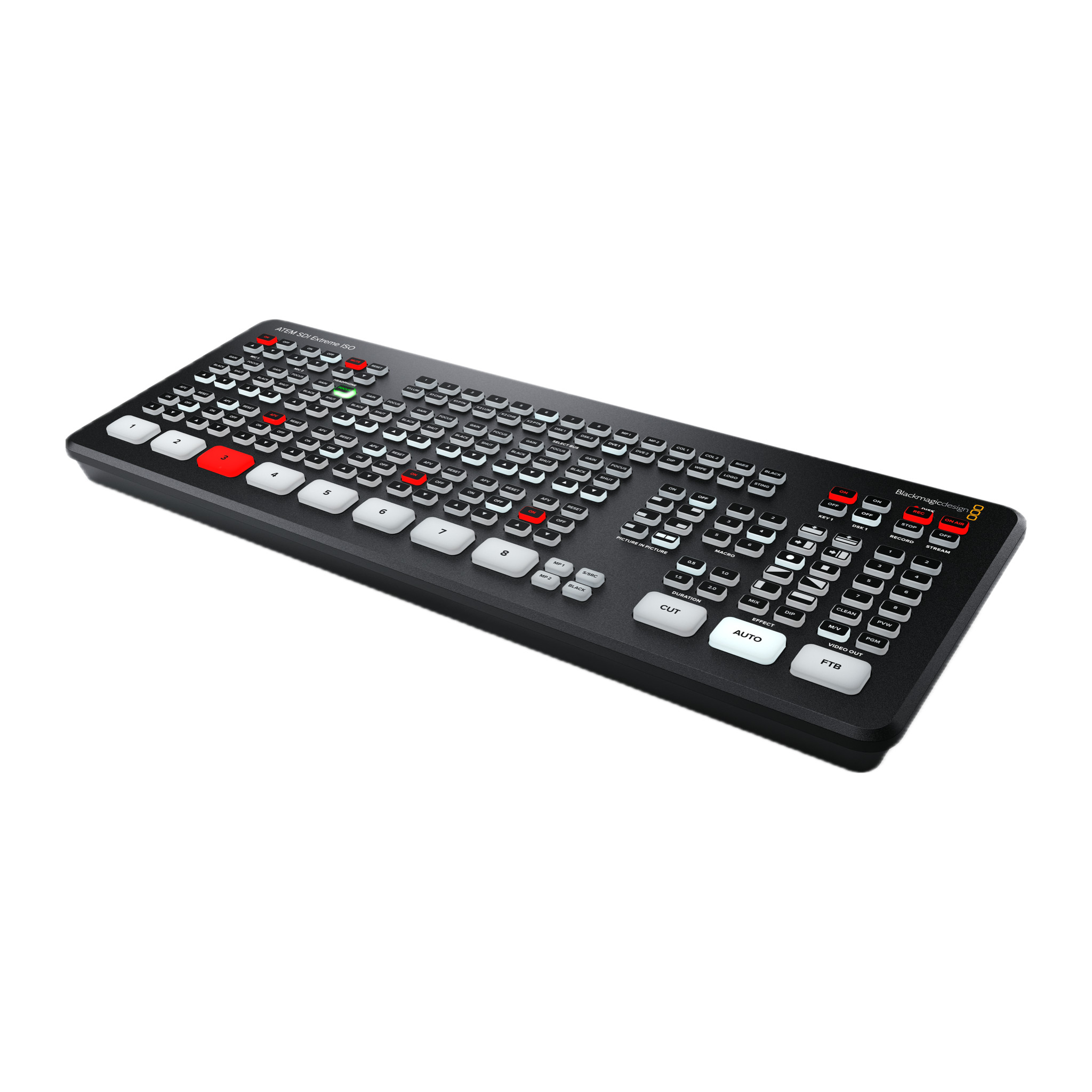

The ATEM SDI Extreme ISO is a desktop live production switcher with eight 3G-SDI inputs, each with standards conversion and re-sync, so cameras running different HD formats can be mixed together up to 1080p60. It has 4 SDI aux outputs (any of them can carry the 16-view multiview), 4 upstream keyers with advanced chroma, 2 downstream keyers, 2 DVEs and 2 media players. A built-in Fairlight mixer adds EQ and dynamics.
Its main draw is ISO recording: it writes nine H.264 files, the eight clean camera feeds plus programme, to USB disks and saves a DaVinci Resolve project so the live cut can be re-edited afterwards. A hardware streaming engine sends the programme out over Ethernet via RTMP, with phone tethering available as a backup link. Podcasts, panel talks and compact esports shows are its usual home.
Highlights

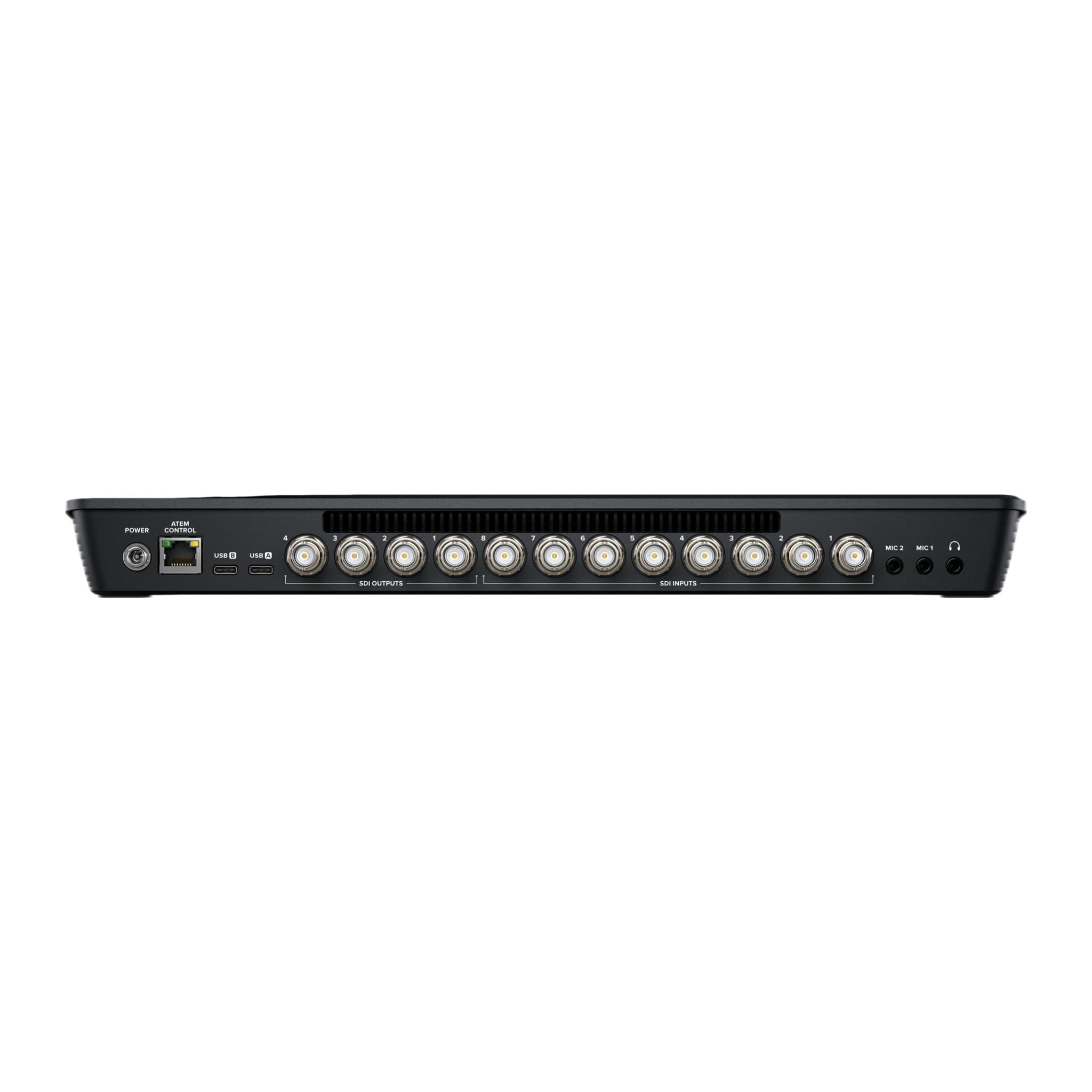

- 018 x 3G-SDI inputs with standards conversion and re-sync, up to 1080p60
- 02ISO records 9 H.264 streams (8 inputs + programme) with a DaVinci Resolve project file
- 034 SDI aux outputs; any of them can carry the 16-view multiview
- 04Built-in streaming over Ethernet via RTMP, plus USB webcam output
- 054 advanced chroma keyers, 2 DSKs, 2 DVEs and Fairlight audio with EQ and dynamics
FAQ
Questions about this gear
USB disks connected to its two USB-C ports. It records nine H.264 video files plus separate WAV audio files, together with a DaVinci Resolve project file.
No. Inputs and outputs are HD only, up to 1080p60.
Not directly: all eight inputs are 3G-SDI. HDMI sources need an HDMI-to-SDI converter.
From the included external 12V power supply. Blackmagic quotes 36W power usage.
