What's in the case
Content list

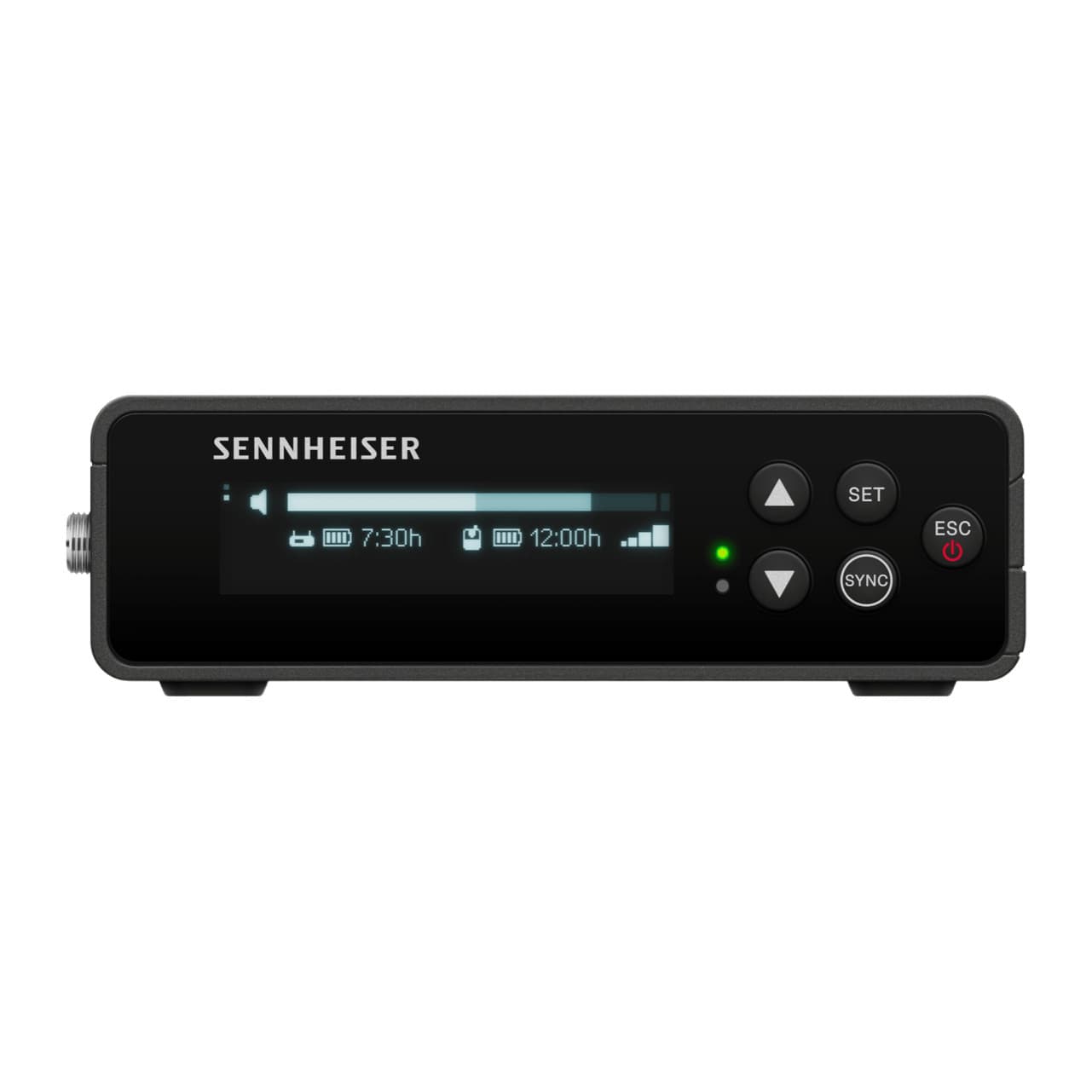

- 1×Sennheiser EW-DP EK portable receiver (R1-6: 520-576 MHz)

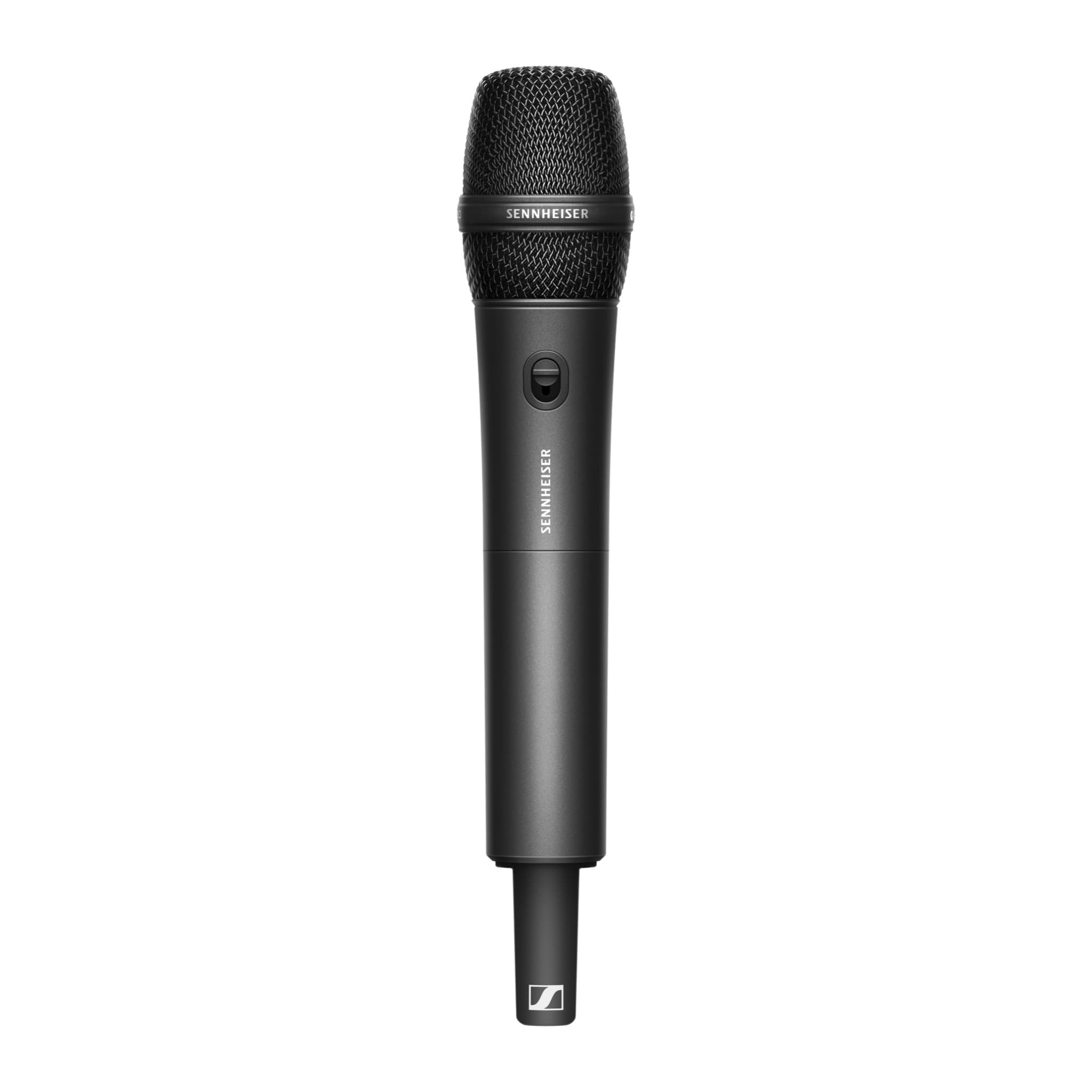

- 1×Sennheiser EW-D SKM-S handheld transmitter with mute switch
- 1×Sennheiser MMD 835 dynamic cardioid capsule (fitted)
- 1×Receiver mounting kit
- 1×Sennheiser BA 70 rechargeable battery
- 2×AA battery

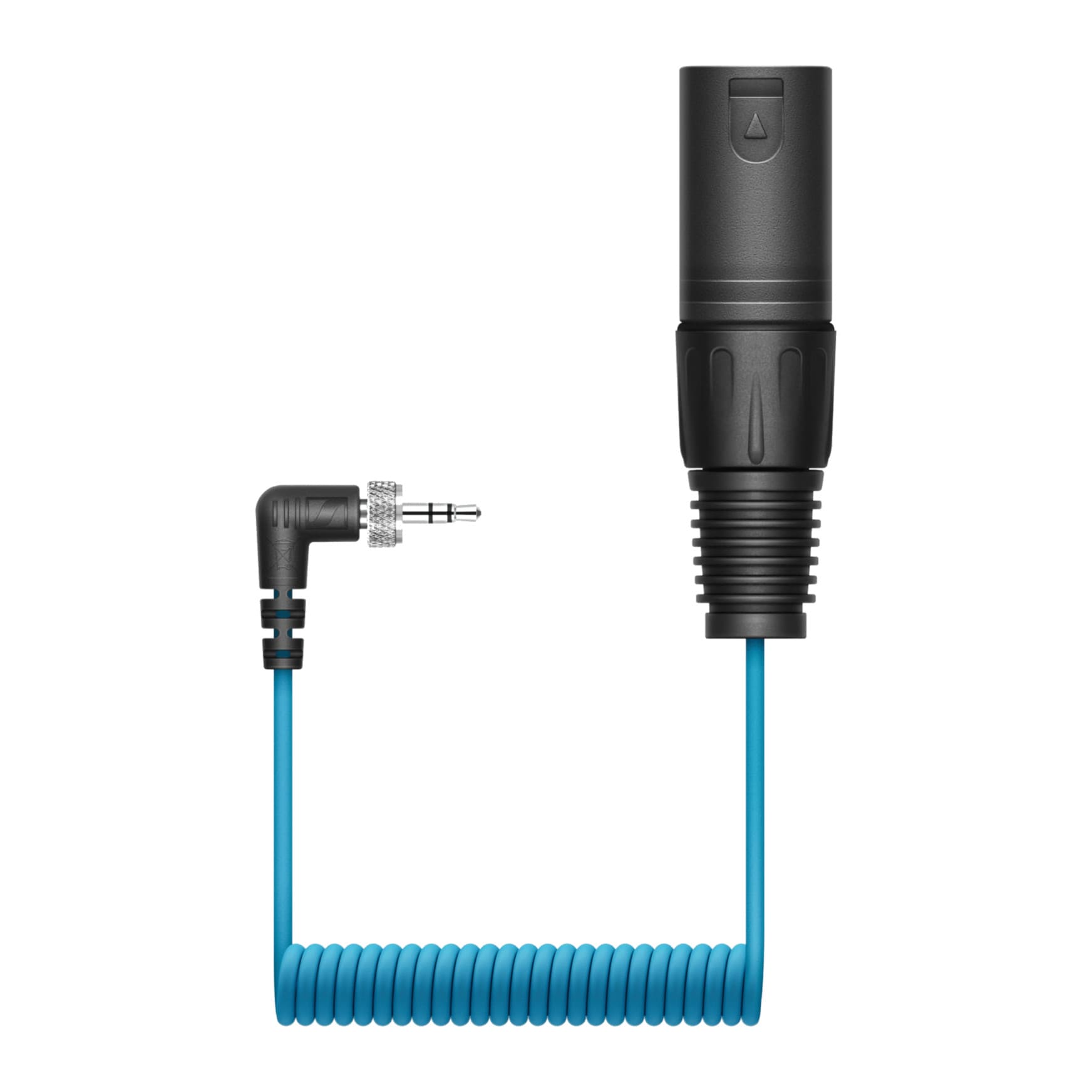

- 1×3.5 mm jack to XLR cable (lockable)

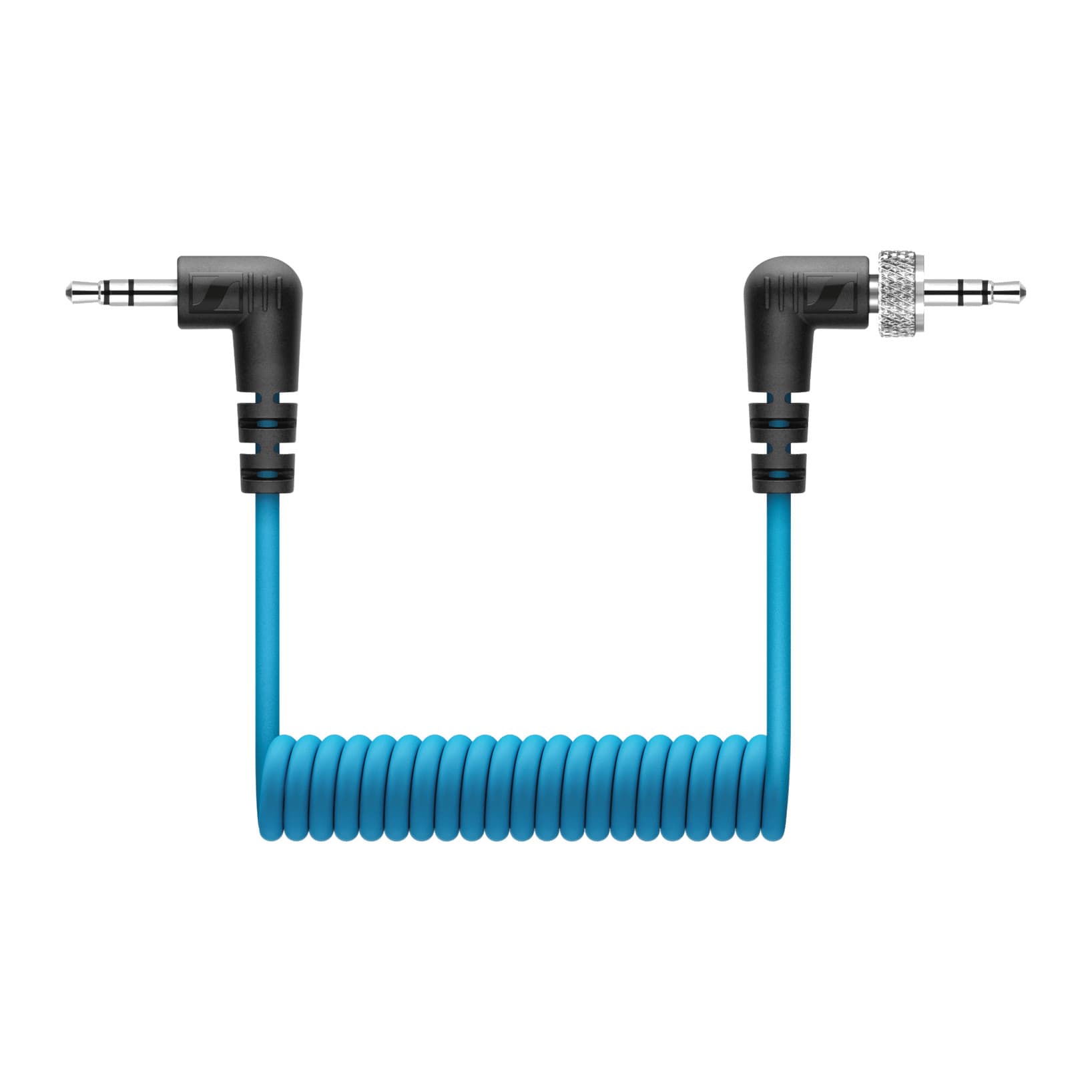

- 1×3.5 mm jack to 3.5 mm jack cable (lockable)
- 1×USB-C charging cable
The gear
About this gear

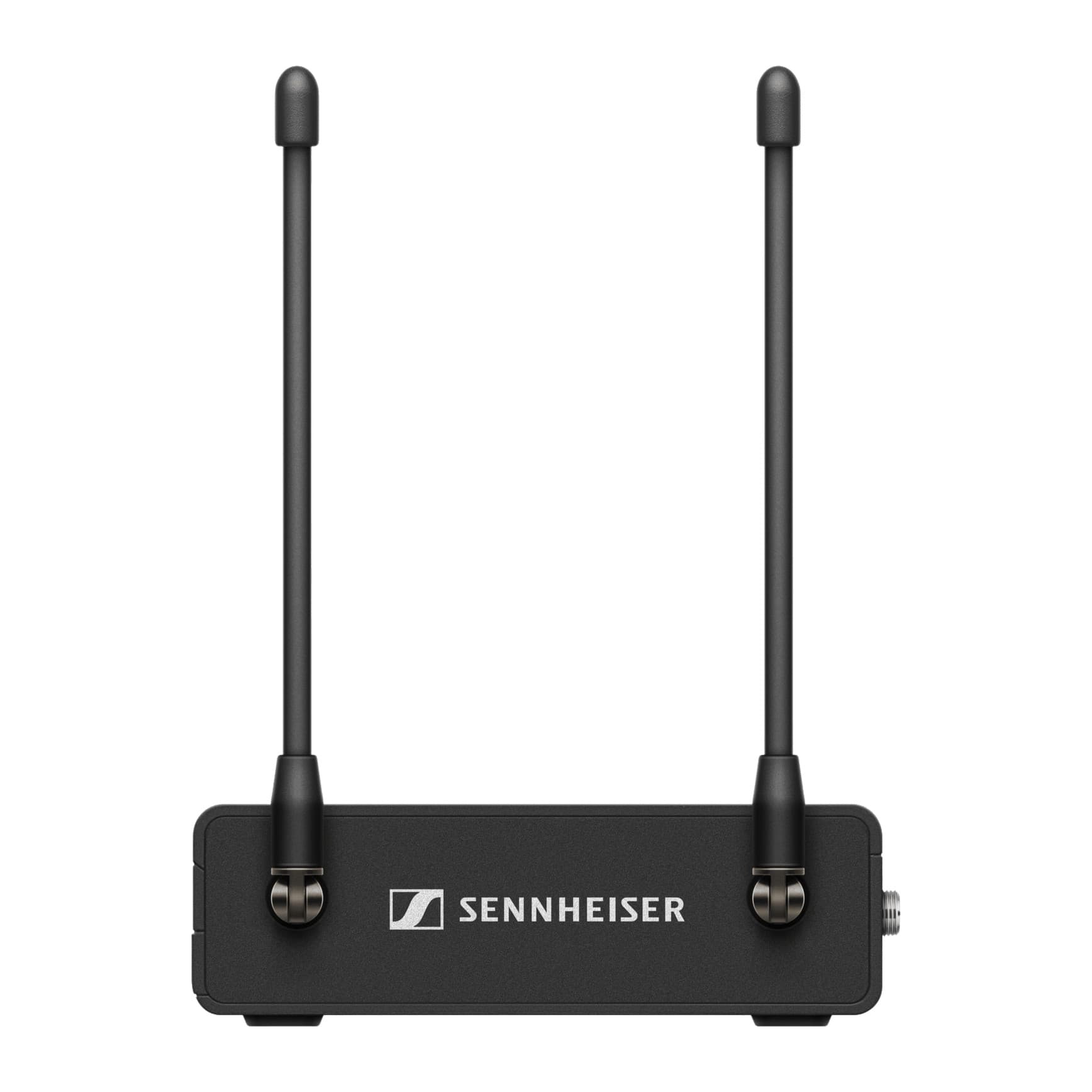

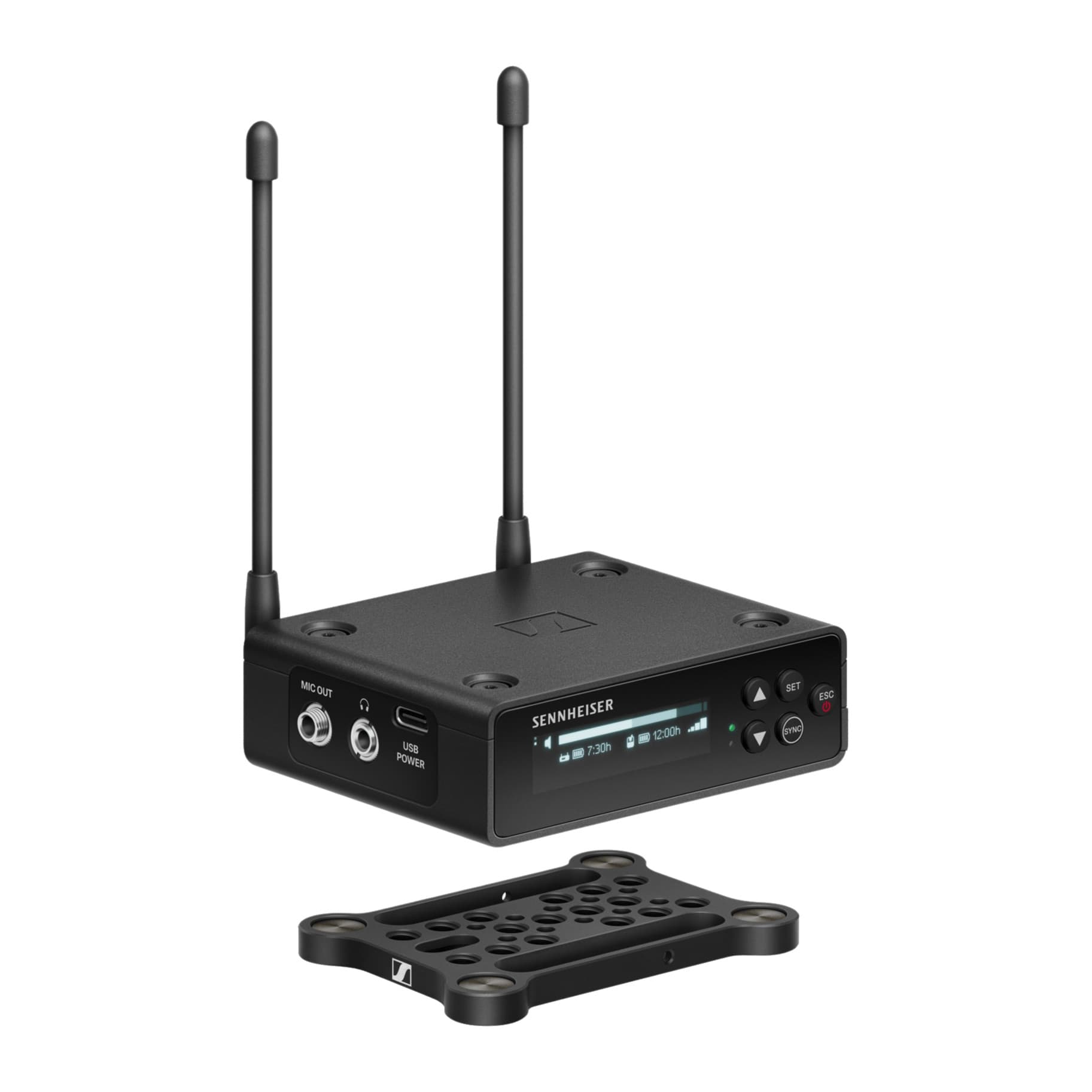

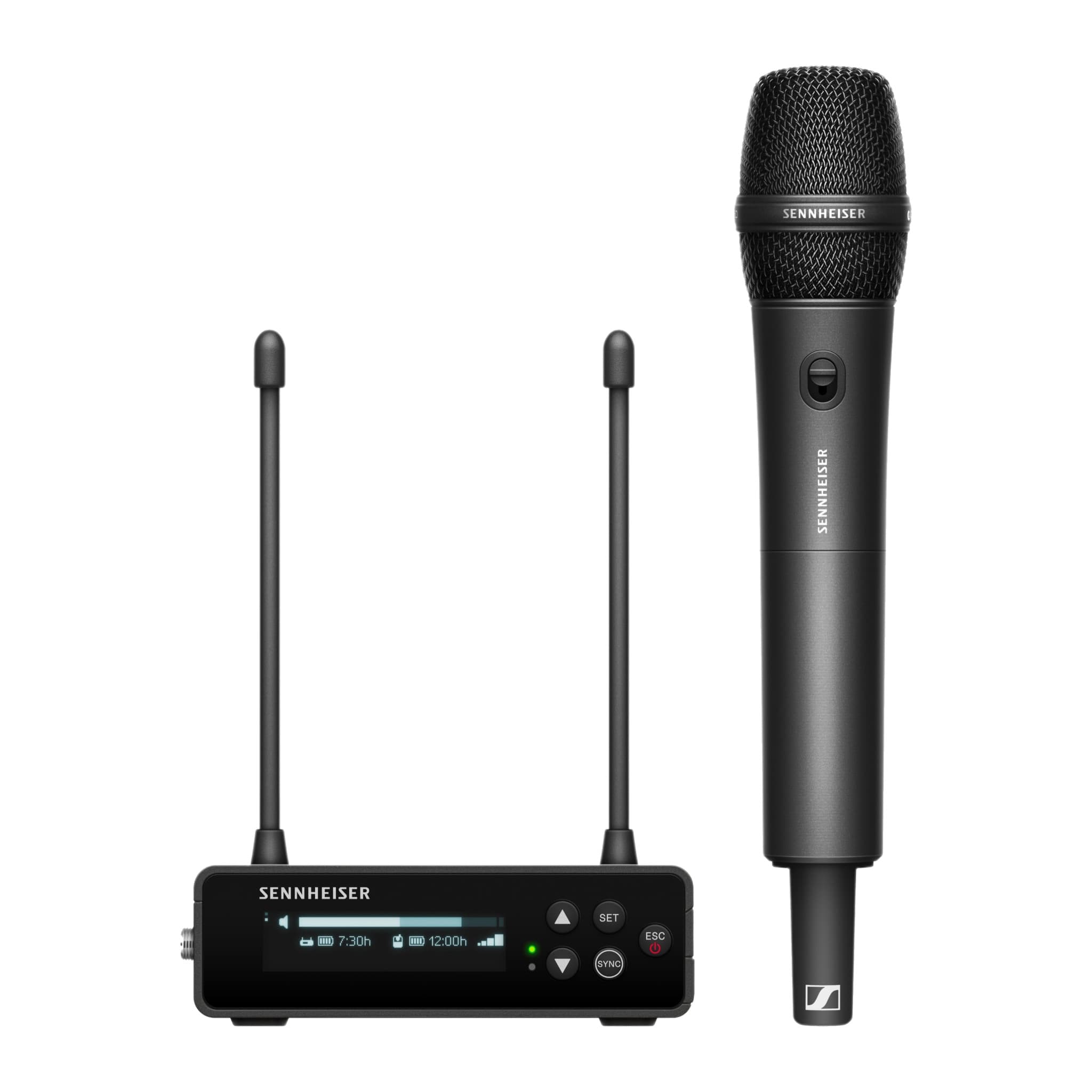

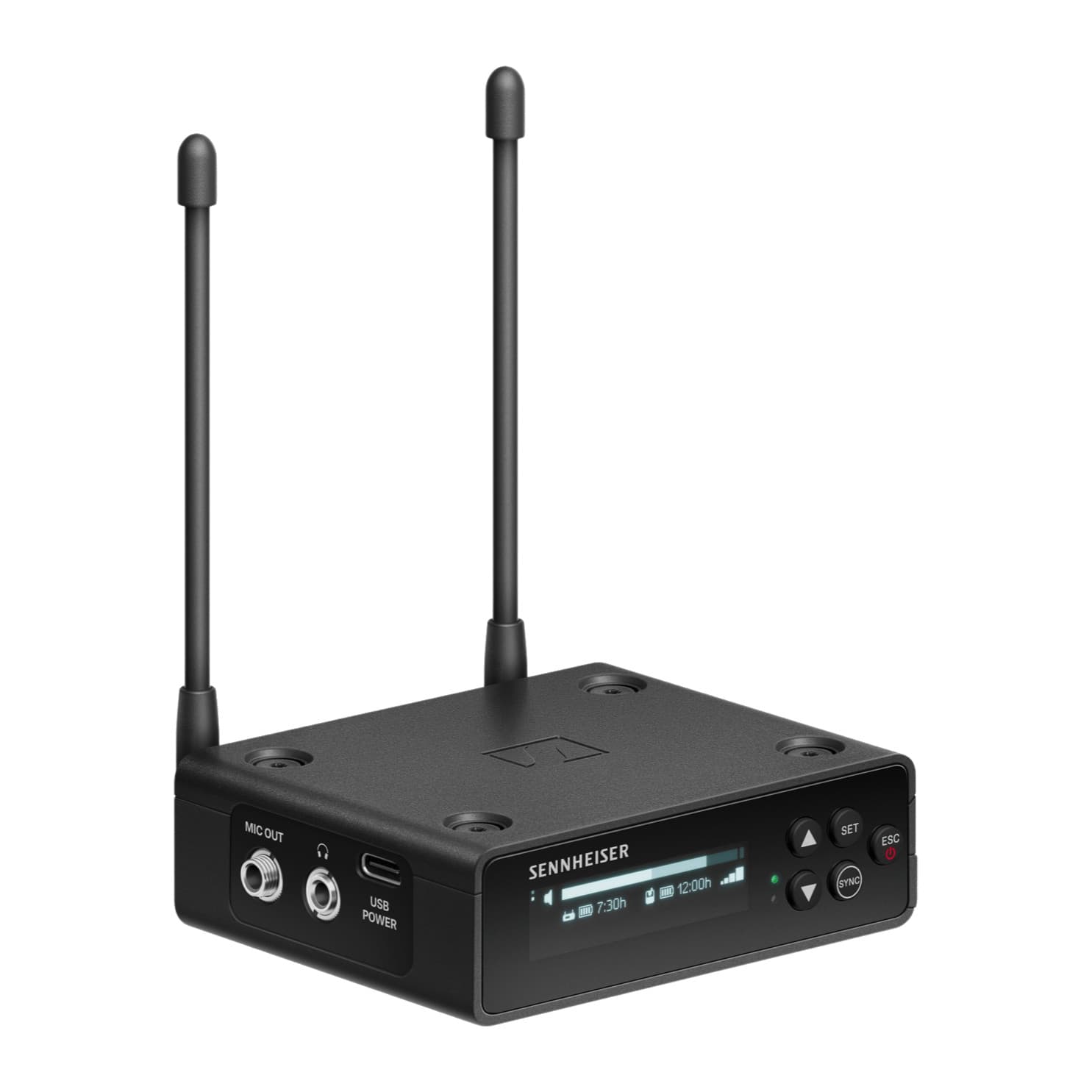

The Sennheiser EW-DP 835 SET is a fully digital wireless handheld kit built for video. It pairs an EW-D SKM-S handheld transmitter, fitted with the dynamic cardioid MMD 835 capsule and a mute switch, with the EW-DP EK portable receiver. This R1-6 version works between 520 and 576 MHz, with up to 56 MHz of switching bandwidth, 1.9 ms system latency and 134 dB of dynamic range. The receiver weighs about 140 g, fits on a camera with the supplied mounting kit, has a headphone output, and is set up and monitored over Bluetooth with Sennheiser's Smart Assist app.
Use it for interviews, vox pops, reporter stand-ups and event hosts, recording straight into a camera or an audio recorder. The receiver's lockable 3.5 mm output goes to a camera's mic input with the 3.5 mm cable, or to an XLR input with the XLR cable. Both units run on a BA 70 rechargeable battery or two AA cells, and the receiver also takes USB-C power. Sennheiser quotes up to 12 hours for the transmitter and up to 7 hours for the receiver.
Highlights
- 01Fully digital UHF, R1-6 band (520-576 MHz): up to 56 MHz switching bandwidth, 1.9 ms latency, 134 dB dynamic range
- 02EW-D SKM-S handheld with mute switch and dynamic cardioid MMD 835 capsule, 10 mW
- 03EW-DP EK camera receiver: about 140 g, mounting kit, headphone output and lockable 3.5 mm output
- 04Cables for a camera's 3.5 mm input or an XLR input are included
- 05Bluetooth setup with the Smart Assist app; BA 70, 2x AA or USB-C power
FAQ
Questions about this gear
Yes. One supplied cable runs from the receiver's lockable 3.5 mm output to a male XLR, so it plugs into a mixer, recorder or camera XLR input. The other cable goes to a 3.5 mm camera input.
Sennheiser EW-D transmitters on the same R1-6 range (520-576 MHz). It does not work with analogue systems such as XS Wireless or ew G3.
The handheld and the receiver each take a BA 70 rechargeable battery or two AA cells, and the receiver can also run and charge from USB-C. The set comes with one BA 70 and two AA batteries. Sennheiser quotes up to 12 hours for the transmitter and up to 7 hours for the receiver.
Pair the handheld with the receiver's SYNC button, or use Sennheiser's Smart Assist app over Bluetooth to scan for free frequencies, set levels and watch battery status.
